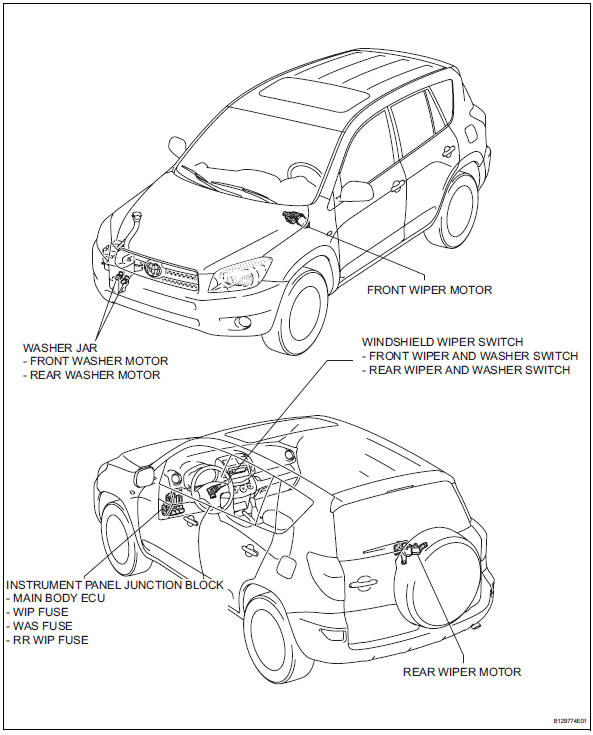

Toyota RAV4 (XA40) 2013-2018 Service Manual: Parts location

Toyota RAV4. Wiper and washer system

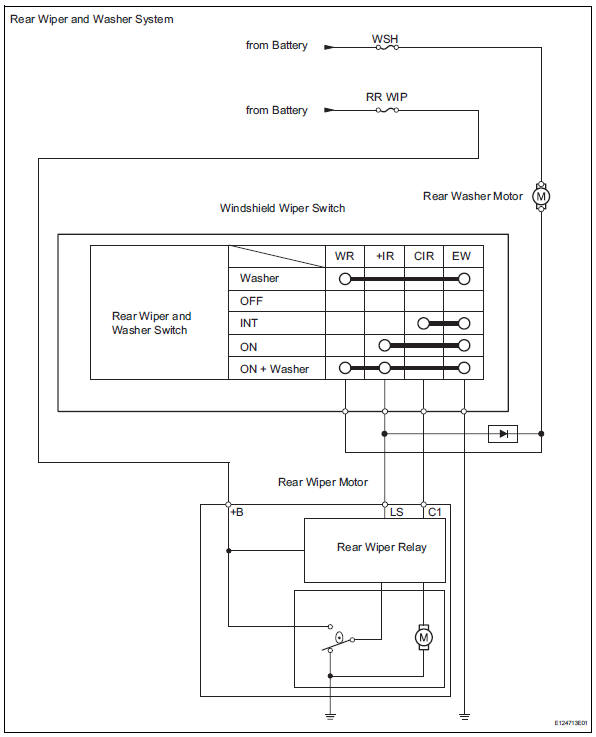

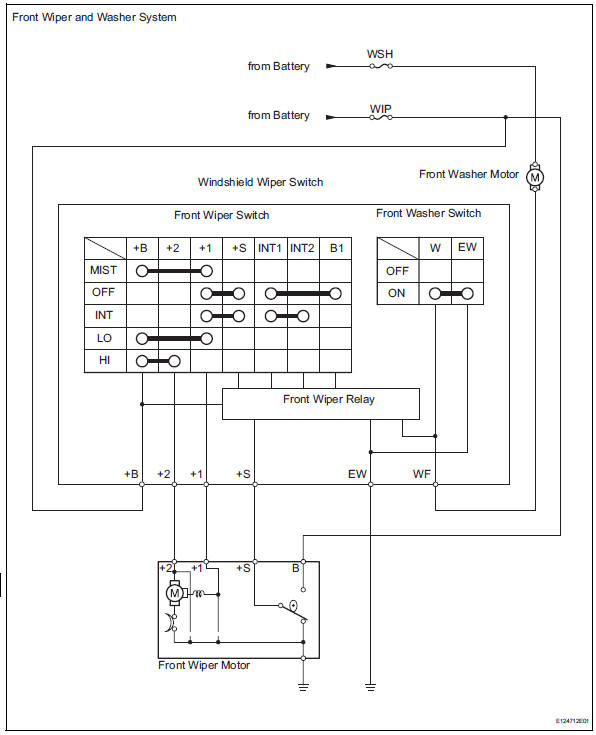

System diagram

Toyota RAV4. Wiper and washer system


Toyota RAV4. Wiper and washer system


Wiper and washer system
...

Problem symptoms table
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of th ...
