Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table

Hint:

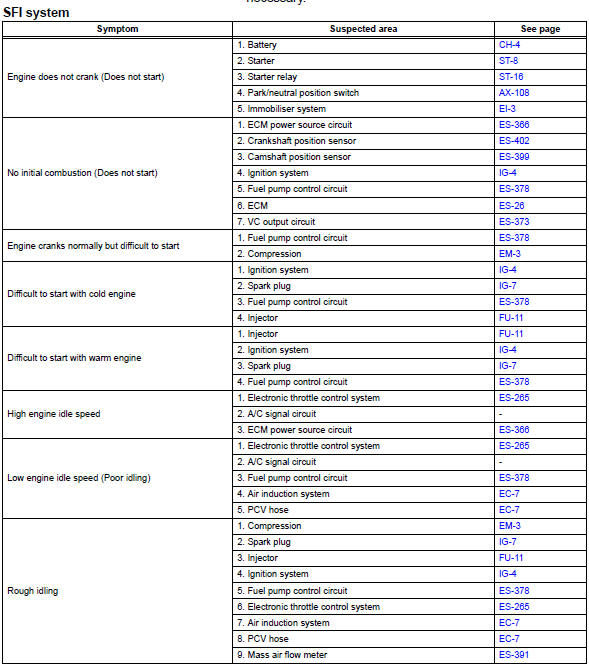

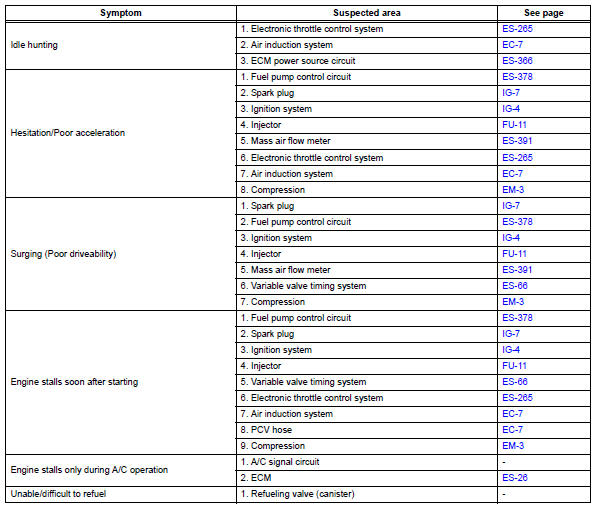

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Toyota RAV4. Problem symptoms table


Toyota RAV4. Problem symptoms table


Air-fuel ratio (a/f) and heated oxygen (ho2) sensor heater monitors (front a/f and rear ho2 sensor type)
Preconditions The monitor will not run unless: The mil is off. Drive pattern Connect the intelligent tester to the dlc3. Turn the ignition switch on. Turn the tester on. ...

Terminals of ecm
Hint: The standard normal voltage between each pair of ecm terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result ...
