Toyota RAV4 Service Manual: Inspection

  1. Inspect engine coolant temperature sensor

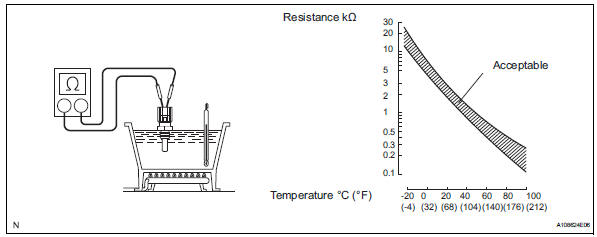

  1. Measure the resistance of the sensor.

Toyota RAV4. Inspect engine coolant temperature sensor


Standard resistance


Notice:

If checking the sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the sensor.

If the result is not as specified, replace the sensor.

Removal
Drain engine coolant (see page co-6) Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal ...

Installation
Install engine coolant temperature sensor Install a new gasket onto the sensor. Using sst, install the sensor. Sst 09817-33190 torque: 19.6 N*m (200 kgf*cm, 14 ft.*Lbf) Connect th ...
