Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table
Hint:

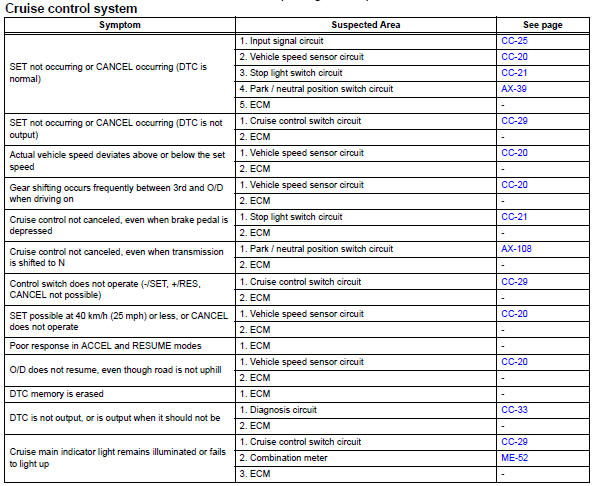

- Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Insect the fuses and relays related to this system before inspecting the suspected areas below.
Registration
Perform vehicle stability control system recognition in ecm
Notice:
If the vehicle has both cruise control and vsc, when
replacing ecm, perform vsc recognition as follows:
Turn the ignitio ...
Terminals of ecm
Check ecm
Disconnect the a9 and b30 connectors.
Measure the voltage and resistance of the wire
harness side connectors.
If the result is not as specified, there may be a
malfu ...
