Toyota RAV4 (XA50) 2019-2026 Owners Manual: Adjusting the open position of the back door (vehicles with power back door)
The open position of the power back door can be adjusted.
1. Stop the back door in the desirable position.

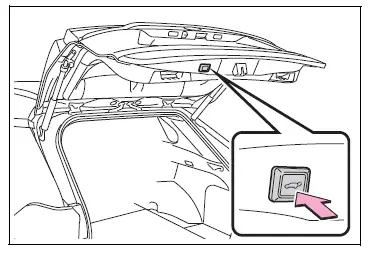

2. Press and hold the power back door switch on the back door for approximately 2 seconds.
When the settings are completed, the buzzer sounds 4 times.
When opening the back door the next time, the back door will stop at that position.
■Canceling the adjusted open position of the back door

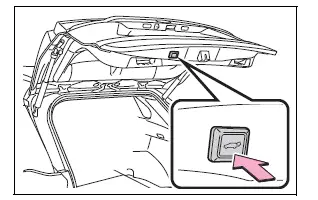

Press and hold the power back door switch on the back door for approximately 7 seconds.
After the buzzer sounds 4 times, it sounds twice more. When the power back door does the opening operation the next time, the door will open to the initial settings position.
■Customization
The opening position can be set with the multi-information display.
Priority for the stop position is given to the last position set by either the power back door switch on the back door or multi-information display.
