Toyota RAV4 (XA40) 2013-2018 Service Manual: Back door lock

Toyota RAV4. Back door lock


Inspection

  1. Inspect back door with motor lock assembly

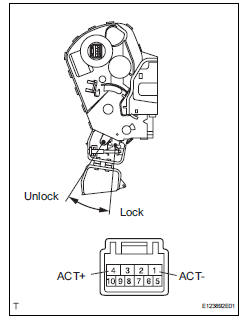

  1. Apply the battery voltage to the door lock motor and check the operation of the door lock motor.

Ok


If the result is not as specified, replace the door lock assembly.
