General maintenance

Inspect brake lines and hoses

Hint:

Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.

Toyota RAV4. Inspect brake lines and hoses

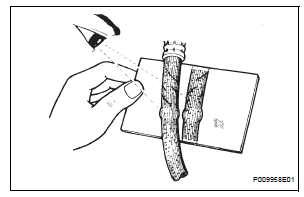

Using a mirror, check the entire circumference and length of the brake lines and hoses for:

Damage
Wear
Deformation
Cracks
Corrosion
Leaks
Bends
Twists

Check all the clamps for tightness and the connections for leakage.
Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.
Check that the lines are installed properly and pass through the center of the grommets.

Inspect front brake

Check the front brake pads and discs (see page br- 42).

Inspect brake linings and drums

Check the brake linings and drums. Also check the brake linings of the parking brake.
