Toyota RAV4 (XA40) 2013-2018 Service Manual: Terminals of ecu

  1. Check power steering ecu

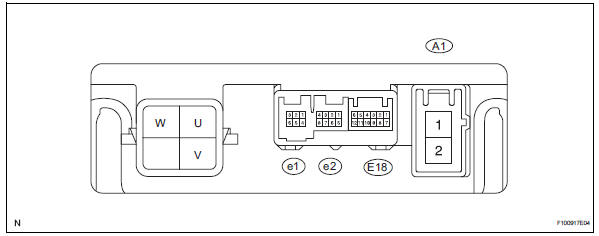

Toyota RAV4. Terminals of ecu


Hint:

Measurements cannot be performed on the c connector side of the power steering ecu.

Toyota RAV4. Terminals of ecu

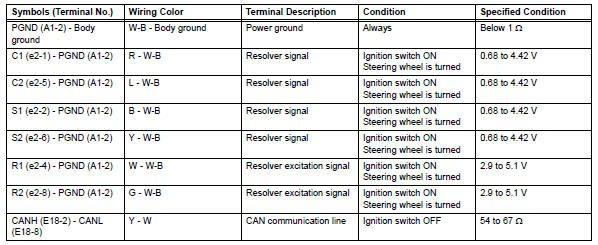

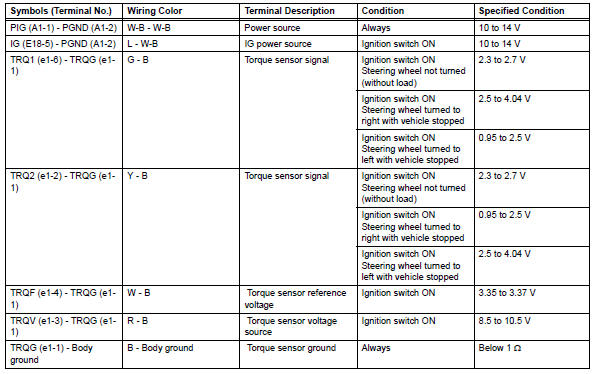

  1. Measure the voltage and resistance of the connectors.

Toyota RAV4. Terminals of ecu


Toyota RAV4. Terminals of ecu


If the result is not as specified, the ecu may have a malfunction.

Problem symptoms table
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of t ...

Diagnosis system
Check dlc3 Check the dlc3: the power steering ecu uses can (iso11898-1) and iso9141-2 for communication protocol. The terminal arrangement of the dlc3 complies with sae j1962 and ...
