Toyota RAV4 (XA50) 2019-2026 Owners Manual: Child restraint system fixed with a child restraint LATCH anchor

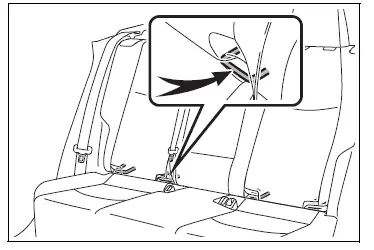

â– Child restraint LATCH anchors
LATCH anchors are provided for the outboard rear seats.
â– When installing in the rear outboard seats
Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.
1. Adjust the seat.
If there is a gap between the child restraint system and the seatback, adjust the seatback angle until good contact is achieved.

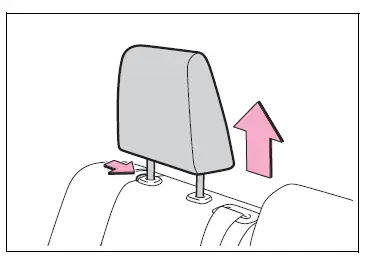

2. If the head restraint interferes with the child restraint system installation and the head restraint can be removed, remove the head restraint.

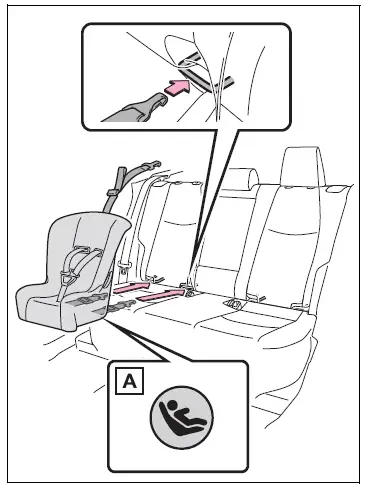

With flexible lower attachments
3. Latch the hooks of the lower attachments onto the LATCH anchors.
For owners in Canada: The symbol on a child restraint system indicates A the presence of a lower connector system.

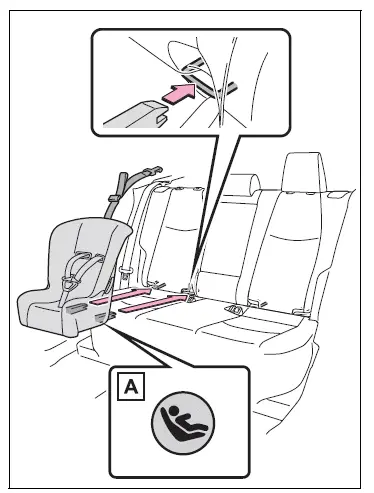

With rigid lower attachments
3. Latch the buckles onto the LATCH anchors.
For owners in Canada: The symbol on a child restraint system indicates A the presence of a lower connector system.
4. If the child restraint has a top tether strap, follow the child restraint manufacturer's operation manual regarding the installation, using the top tether strap to latch onto the top tether strap anchor.
5. After installing the child restraint system, rock it back and forth to ensure that it is installed securely.
â– When installing in the rear center seat
There are no LATCH anchors behind the rear center seat.
However, the inboard LATCH anchors of the outboard seats, which are 17.3 in. (440 mm) apart, can be used if the child restraint system manufacturer's instructions permit use of those anchors with the anchor spacing stated.
Child restraint systems with rigid lower attachments cannot be installed in the center seat. This type of child restraint system can only be installed in the outboard seat.
â– Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used.
This vehicle is designed to conform to SAE J1819.
WARNING
â– When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
- When using the LATCH anchors, be sure that there are no foreign objects around the anchors and that the seat belt is not caught behind the child restraint system.
- Follow all installation instructions provided by the child restraint system manufacturer.
- Never attach two child restraint
system attachments to the
same anchor. In a collision, one
anchor may not be strong
enough to hold two child
restraint system attachments
and may break.
If the LATCH anchors are already in use, use the seat belt to install a child restraint system in the center seat.
- When securing some types of
child restraint systems in rear
seats, it may not be possible to
properly use the seat belts in
positions next to the child
restraint without interfering with
it or affecting seat belt effectiveness.
Be sure your seat belt fits snugly across your shoulder and low on your hips. If it does not, or if it interferes with the child restraint, move to a different position. Failure to do so may result in death or serious injury.
- If the seat is adjusted, reconfirm the security of the child restraint system.
