Toyota RAV4 (XA40) 2013-2018 Service Manual: Components

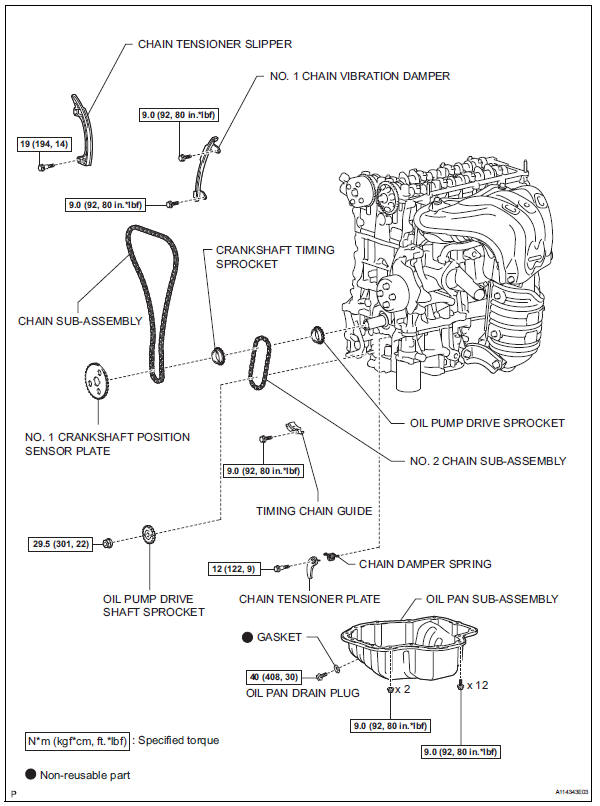

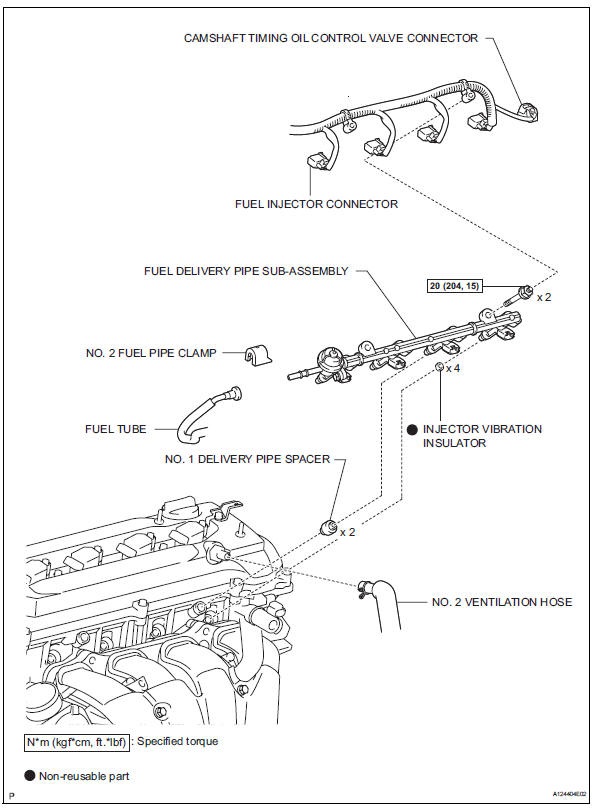

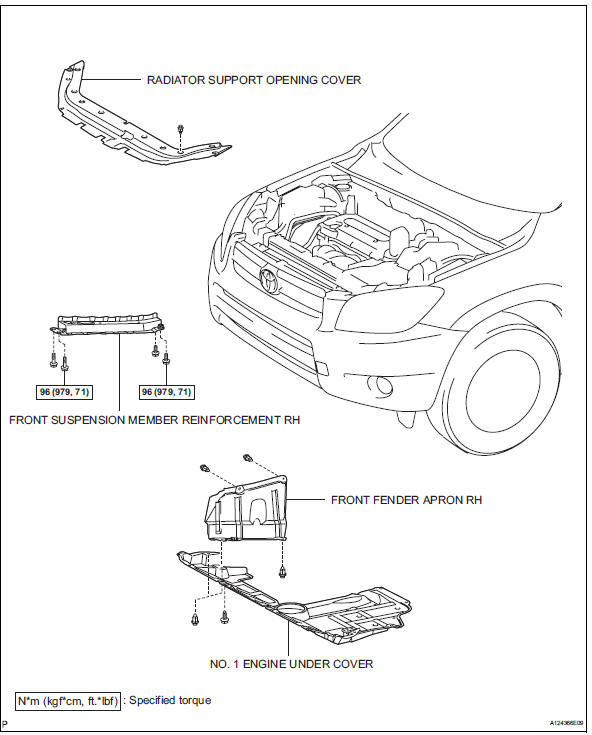

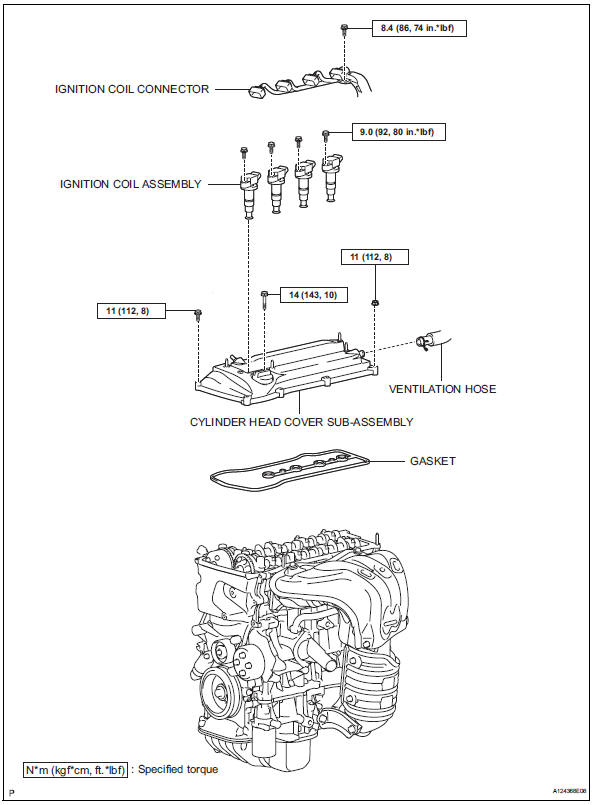

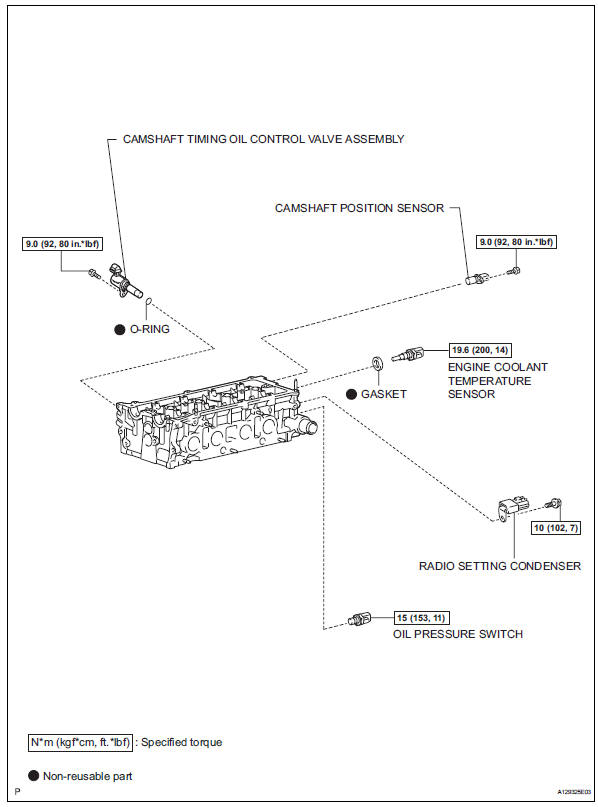

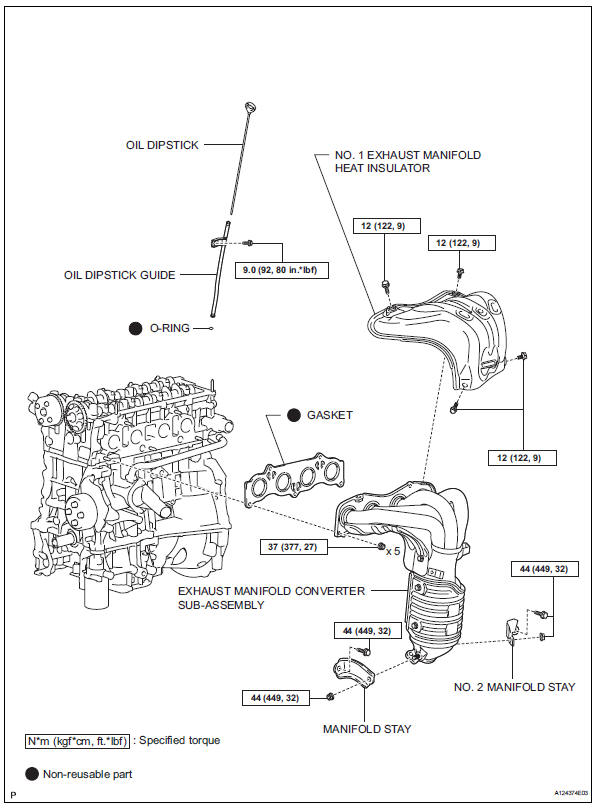

Toyota RAV4. Components

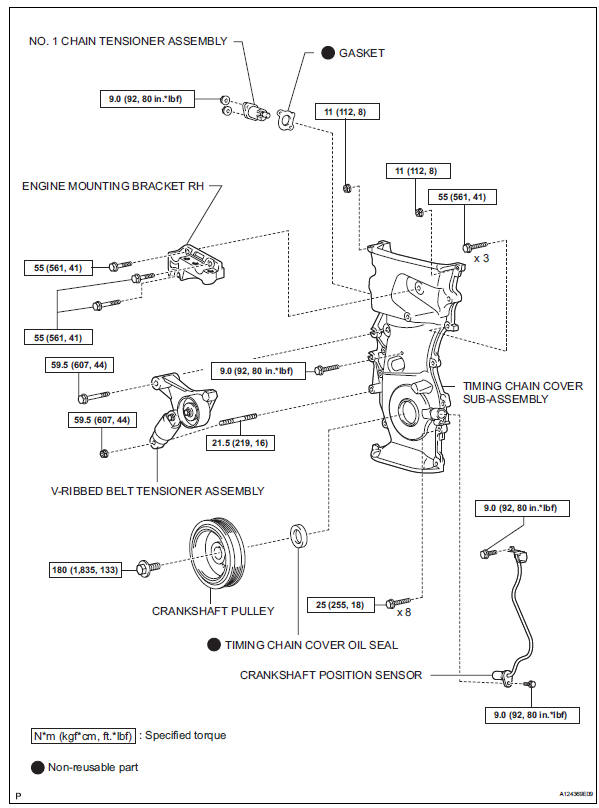

Toyota RAV4. Components

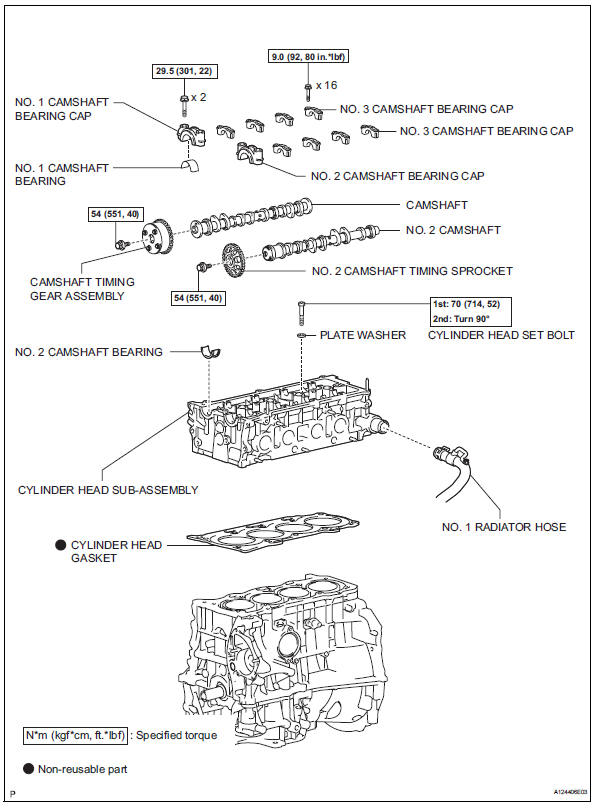

Toyota RAV4. Components

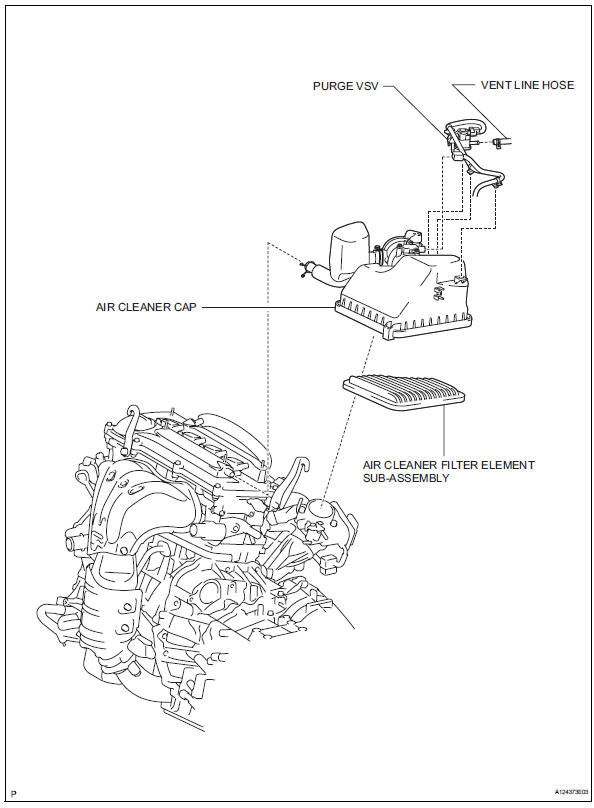

Toyota RAV4. Components

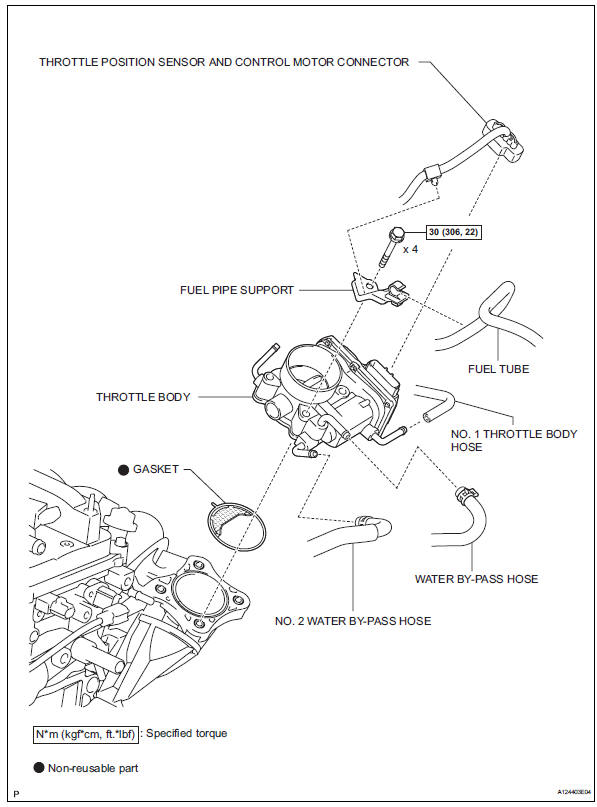

Toyota RAV4. Components

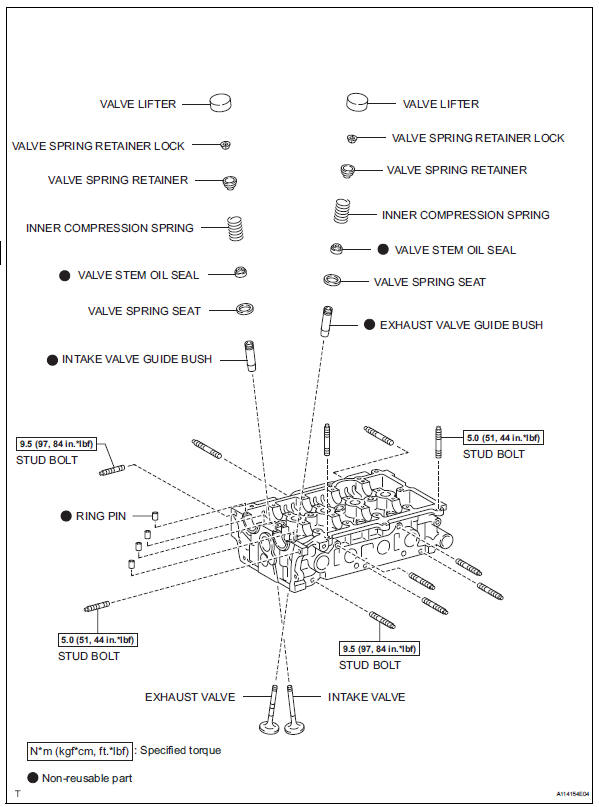

Toyota RAV4. Components

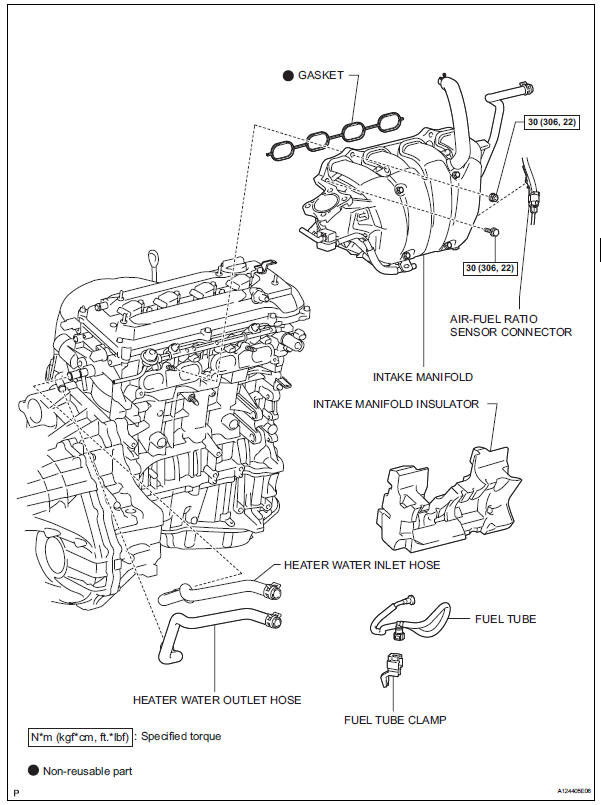

Toyota RAV4. Components

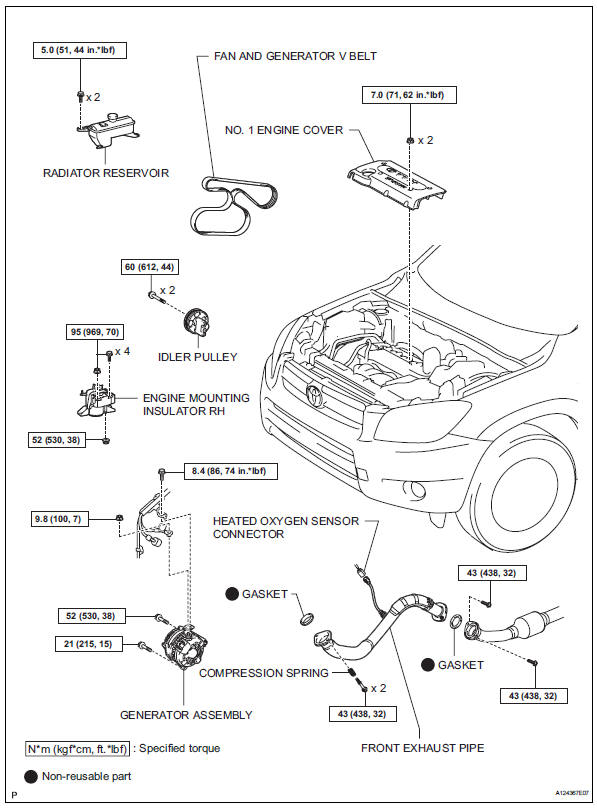

Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components
