Toyota RAV4 (XA40) 2013-2018 Service Manual: Diagnostic trouble code chart (2005/11-2006/01)

Hint:

When the air conditioning system functions properly, dtc b1400/00 is output.

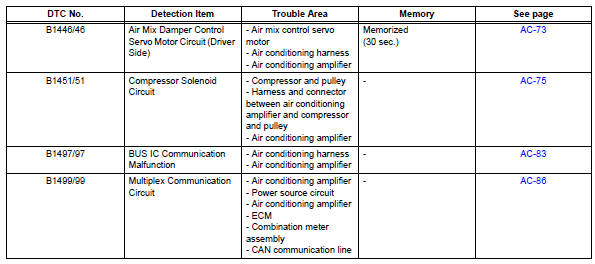

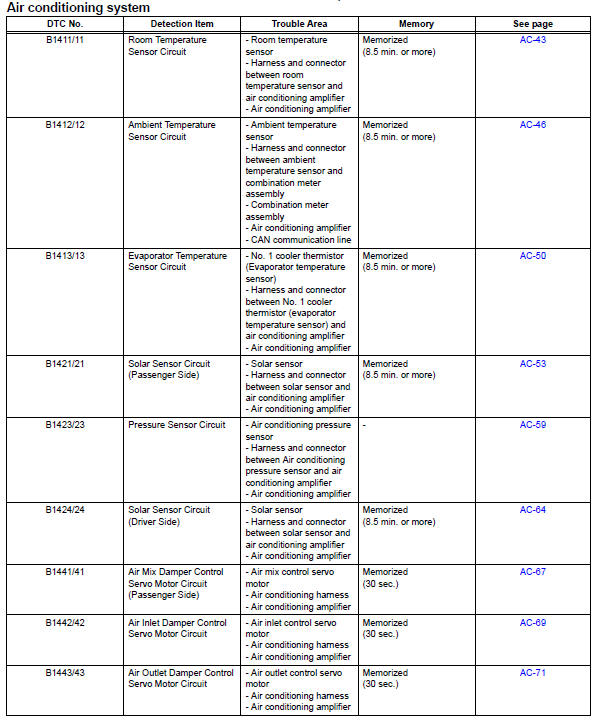

Toyota RAV4. Diagnostic trouble code chart (2005/11-2006/01)


Toyota RAV4. Diagnostic trouble code chart (2005/11-2006/01)


Data list / active test (2006/01- )
Read data list Hint: Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the data list early in ...

Diagnostic trouble code chart (2006/01- )
Hint: When the air conditioning system functions properly, dtc b1400/00 is output. Hint: *1: Dtc b1422/22 (compressor lock sensor circuit) is indicated only for a currently occurring malf ...

Other materials:

If the electronic key does not operate properly (vehicles with a smart key system)
If communication between the electronic key and vehicle is interrupted („_p. 107) Or the electronic key cannot be used because the battery is depleted, the smart key system and wireless remote control cannot be used. In such cases, the doors can be opened and the engine can be started by follo ...

Ig power source circuit
Description This is the main power source supplied to the air conditioning amplifier when the ignition switch is on (ig). This power source is used for operating components, such as the air conditioning amplifier and servo motors. Wiring diagram Inspection procedure Inspect fuse (ec ...

Data list / active test
Active test Hint: Performing the intelligent tester active test allows relay, vsv, actuator and other items to be operated without removing any parts. Performing the active test early in troubleshooting is one way to save time. The data list can be displayed during the active test. ...
