Toyota RAV4 (XA40) 2013-2018 Service Manual: Data list / active test (2006/01- )

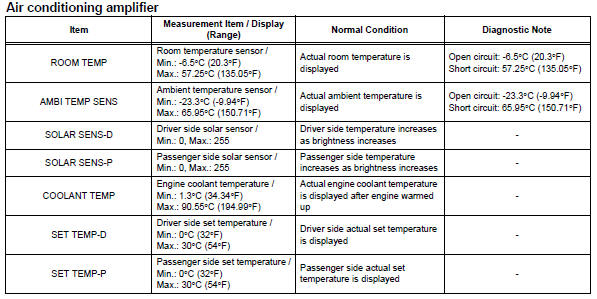

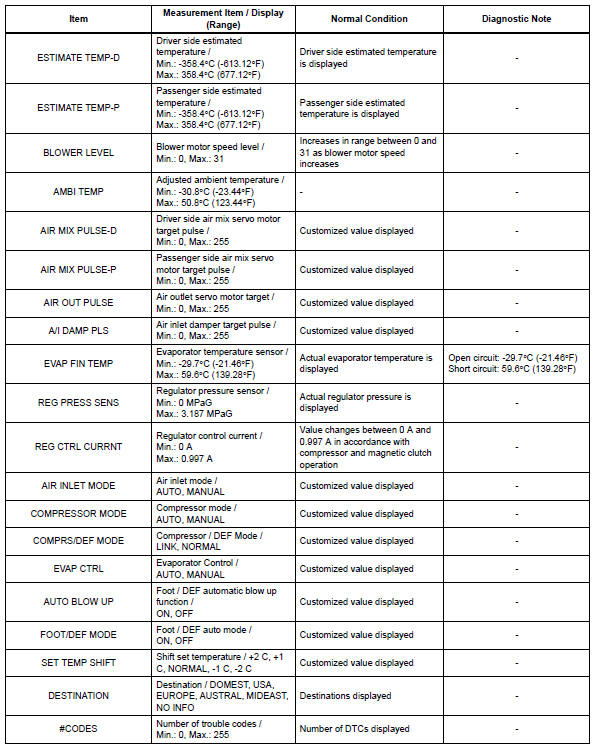

  1. Read data list

Toyota RAV4. Read data list


Hint:

Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the data list early in troubleshooting is one way to save time.

  1. Connect the intelligent tester (with can vim) to the dlc3.
  2. Turn the ignition switch on and turn the intelligent tester on.
  3. Read the data list by following the prompts on the tester.

Toyota RAV4. Read data list


Toyota RAV4. Read data list

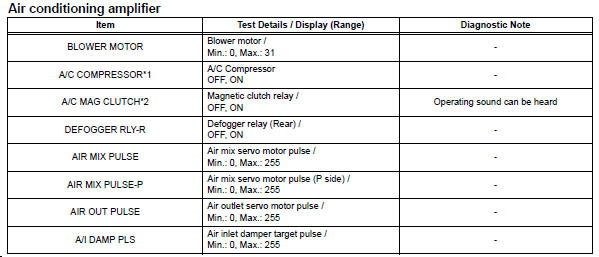

  1. Perform active test

Hint:

Performing the intelligent tester's active test allows relay, vsv, actuator and other items to be operated without removing any parts. Performing the active test early in troubleshooting is one way to save time.

The data list can be displayed in the active test.

  1. Connect the intelligent tester (with can vim) to the dlc3.
  2. Turn the ignition switch on and turn the intelligent tester on.
  3. Perform the active test by following the prompts on the tester.

Toyota RAV4. Perform active test


Hint:

*1: For 2az-fe

*2: For 2gr-fe

Data list / active test (2005/11-2006/01)
Read data list Read data list Hint: Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the ...

Diagnostic trouble code chart (2005/11-2006/01)
Hint: When the air conditioning system functions properly, dtc b1400/00 is output. ...
