Toyota RAV4 (XA50) 2019-2026 Owners Manual: Fog light switch

The fog lights offer improved visibility in difficult driving conditions, such as in rain and fog.

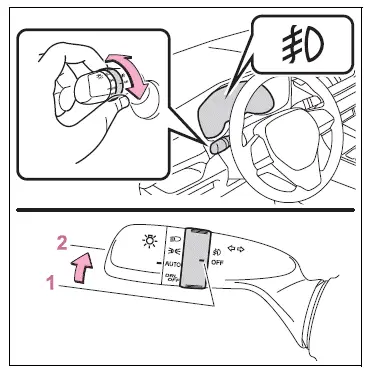

Operating procedure

Operating the lights and wipers


  1. *1 or
    *2 Turns the
    fog lights off
  2. Turns the fog lights on

*1:For the U.S.A.

*2:For Canada

â– Fog lights can be used when

The headlights are on in low beam.
