Toyota RAV4 (XA40) 2013-2018 Service Manual: Front power seat lumbar switch

Toyota RAV4 (XA40) 2013-2018 Service Manual / Seat / Front power seat lumbar switch

Inspection

Toyota RAV4. Front power seat lumbar switch


  1. Inspect front power seat lumbar switch lh

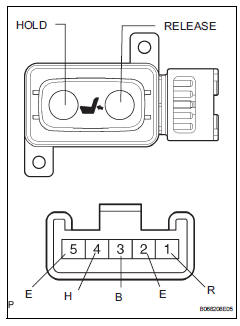

  1. Measure the resistance between the terminals when the switch is operated.

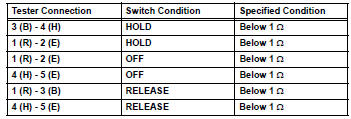

Standard resistance


If the result is not as specified, replace the switch.
