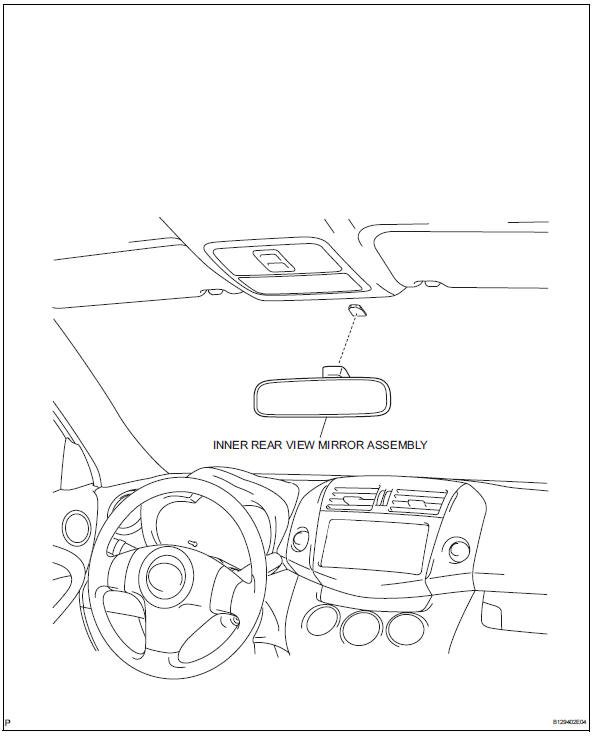

Components

Toyota RAV4. Inner rear view mirror


Removal

  1. Remove inner rear view mirror assembly

Toyota RAV4. Remove inner rear view mirror assembly


  1. Disengage the 2 claws and separate the inner rear view mirror cover as shown in the illustration.

Toyota RAV4. Remove inner rear view mirror assembly


  1. Remove the inner rear view mirror as shown in the illustration.

Installation

  1. Install inner rear view mirror assembly

Toyota RAV4. Install inner rear view mirror assembly


  1. Install the inner rear view mirror as shown in the illustration.
  2. Install the cover.
