Toyota RAV4 (XA40) 2013-2018 Service Manual: Multiplex communication circuit

Toyota RAV4. Multiplex communication circuit


Description

The air conditioning amplifier communicates data with the ecm and combination meter through the can communication system.

Toyota RAV4. Multiplex communication circuit

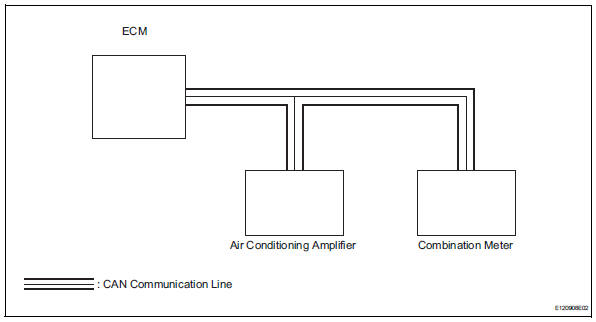

Wiring diagram

Toyota RAV4. Multiplex communication circuit


Inspection procedure

  1. Check dtc

  1. Clear the dtc (see page ac-31).
  2. Read the dtc (see page ac-31).

Result




Go to can communication system
