Toyota RAV4 (XA50) 2019-2025 Owners Manual: Vehicle information display

â–  Drive information

2 items that are selected using the "Drive Info Items" setting (average speed, distance and total time) can be displayed vertically.

The displayed information changes according to the "Drive Info Type" setting (since the system was started or between resets).

Use the displayed information as a reference only.

Following items will be displayed.

*: These items are reset each time the engine stops.

*: To reset, display the desired item and press and hold .

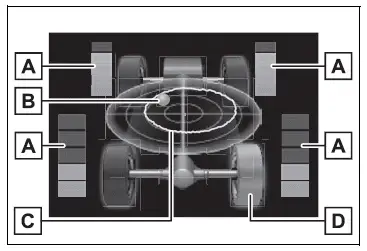

â–  AWD system display (AWD models)

Multi-information display (with 7-inch multi-information display)


  1. Torque distribution display Displays the drive status of each wheel in 6 steps from 0 to 5.
  2. G-force display*
    Displays the size and direction of the G-force applied to the vehicle via changes to the position of the ball on the display.
  3. Maximum G-force course* This item is linked with the G-force display and the course of the past movement of the ball is displayed.

    Press and hold to reset the
    record.

  4. Wheel spin display
    When a tire is spinning, its icon on the display changes its color and blinks.

*: This item is displayed only when driving mode is set to sport mode.

The illustration used is intended as an example, and may differ from the image that is actually displayed on the multi-information display.
