Toyota RAV4 (XA40) 2013-2018 Service Manual: Occupant classification ecu malfunction
![Toyota RAV4. Occupant classification ecu malfunction](images/books/256/68/4.htm86.jpg)
Description

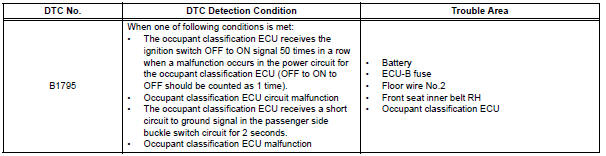

Dtc b1795 is recorded when a malfunction is detected in the occupant
classification ecu.
Troubleshoot dtc b1771 first when dtc b1771 and b1795 are output simultaneously.
![Toyota RAV4. Occupant classification ecu malfunction](images/books/256/68/4.htm87.jpg)

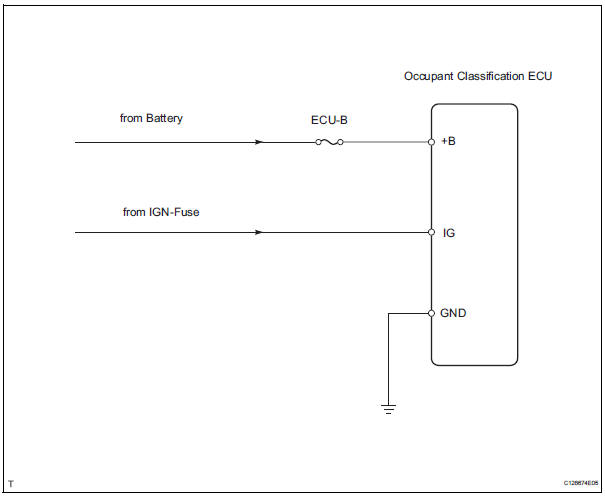

Wiring diagram
![Toyota RAV4. Occupant classification ecu malfunction](images/books/256/68/4.htm88.jpg)
Inspection procedure
- Check for dtc
- Turn the ignition switch on, and wait for at least 10
seconds.
- Check the dtcs (see page rs-249).
Result ![](images/books/256/68/4.htm89.jpg)
Hint:
Dtcs other than dtc b1771 and b1795 may be output
at this time, but they are not related to this check.
![](images/books/256/68/4.htm208.gif)
- Check fuse (ecu-b)
- Check the ecu-b fuse from the instrument panel
junction block.
- Measure the resistance of the fuse.
Standard resistance:
below 1 ![](images/books/256/68/4.htm209.gif)
![](images/books/256/68/4.htm211.gif)
- Check wire harness (source voltage)
![Toyota RAV4. Check wire harness (source voltage)](images/books/256/68/4.htm94.jpg)
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery
terminal, and wait for at least 90 seconds.
- Disconnect the no. 2 Floor wire connector from the
occupant classification ecu.
- Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
- Measure the voltage of the wire harness side connector.
Standard voltage ![](images/books/256/68/4.htm95.jpg)
- Turn the ignition switch off.
- Measure the resistance of the wire harness side
connector
standard resistance ![](images/books/256/68/4.htm96.jpg)
![](images/books/256/68/4.htm213.gif)
- Replace occupant classification ecu
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery
terminal, and wait for at least 90 seconds.
- Replace the occupant classification ecu (see page rs-
392).
Hint:
Perform the inspection using parts from a normal vehicle
if possible.
- Perform zero point calibration
- Connect the cable to the negative (-) battery terminal,
and wait for at least 2 seconds.
- Connect the intelligent tester to the dlc3.
- Turn the ignition switch on.
- Using the intelligent tester, perform the zero point
calibration (see page rs-241).
Ok:
completed is displayed.
![](images/books/256/68/4.htm215.gif)
- Perform sensitivity check
- Using the intelligent tester, perform the sensitivity check
(see page rs-241).
Standard value:
27 to 33 kg (59.52 To 72.75 Lb)
![](images/books/256/68/4.htm216.gif)
End
