Toyota RAV4 (XA40) 2013-2018 Service Manual: On-vehicle inspection

  1. Inspect refrigerant pressure with manifold gauge set

  1. This method uses a manifold gauge set to locate problem areas. Read the manifold gauge pressure when these conditions are established. Test conditions:

Toyota RAV4. On-vehicle inspection


 Toyota RAV4. On-vehicle inspection

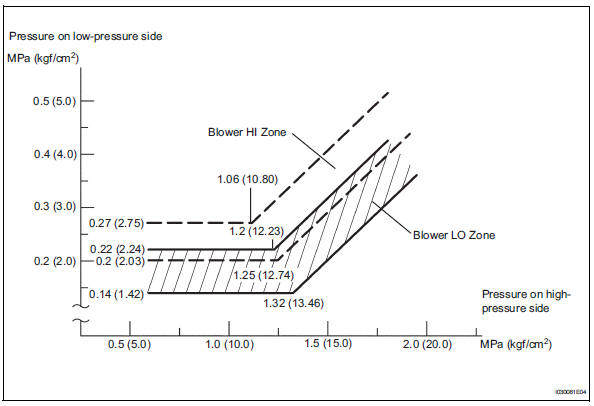

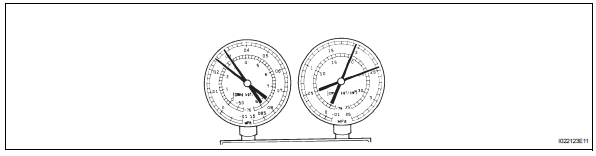

  1. Normally functioning refrigeration system

Gauge reading v

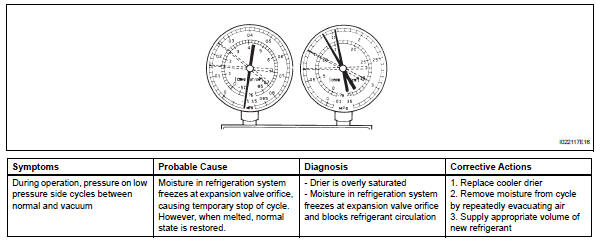

  1. The a/c system periodically changes between normal and improper function due to moisture in the refrigerant system.

Toyota RAV4. On-vehicle inspection

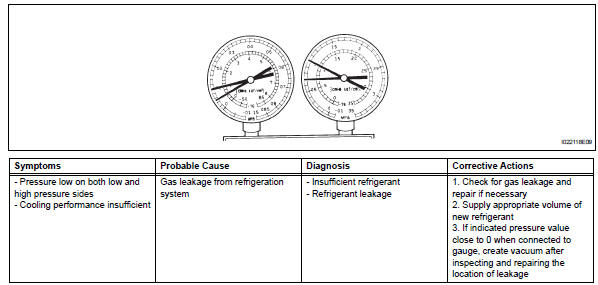

  1. The a/c system does not function effectively due to insufficient cooling.

Toyota RAV4. On-vehicle inspection

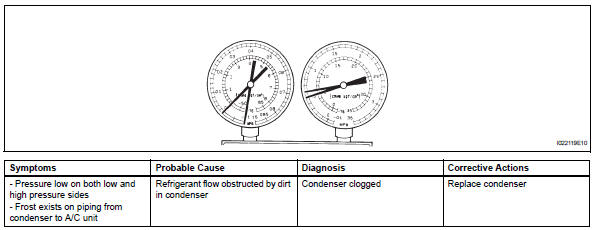

  1. The a/c system does not function effectively due to poor circulation of the refrigerant.

Toyota RAV4. Refrigerant

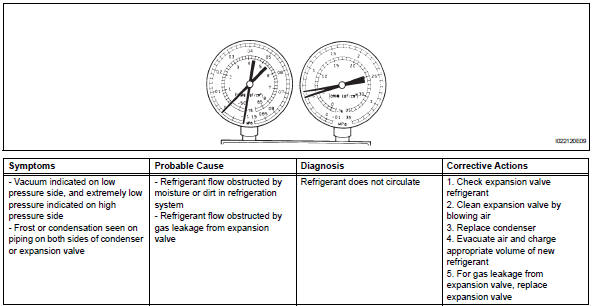

  1. The a/c system does not function intermittently because the refrigerant does not circulate.

Toyota RAV4. On-vehicle inspection

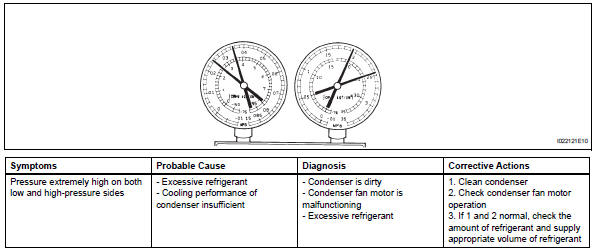

  1. The a/c system does not function effectively due to overcharged refrigerant or insufficient cooling of the condenser.

Toyota RAV4. On-vehicle inspection

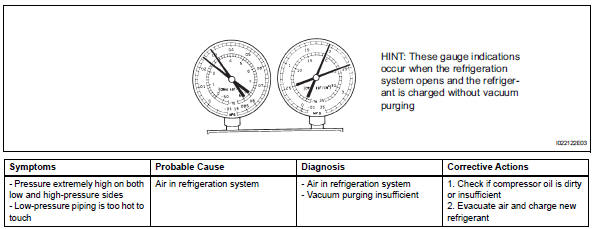

  1. The a/c system does not function due to air in the refrigeration system.

Caution:

The low-pressure piping may be very hot and cause serious burns.

Toyota RAV4. On-vehicle inspection


  1. The a/c system does not function effectively due to an expansion valve malfunction.

Toyota RAV4. On-vehicle inspection


Toyota RAV4. On-vehicle inspection

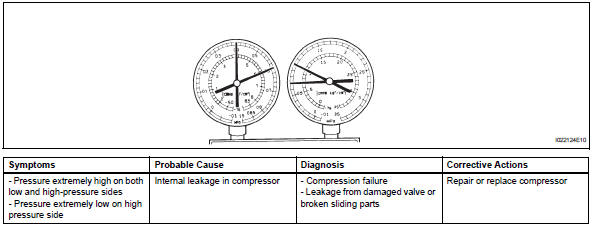

  1. The a/c system does not function due to a defective compressor.

Toyota RAV4. On-vehicle inspection


Refrigerant
...

Replacement
discharge refrigerant from refrigeration system Start up the engine. Turn the a/c switch on. Operate the cooler compressor with an engine speed of approximately 1,000 rpm for 5 to 6 min ...
