Toyota RAV4 (XA40) 2013-2018 Service Manual: Problem symptoms table (2006/01- )

Toyota RAV4 (XA40) 2013-2018 Service Manual / Lighting / Lighting system / Problem symptoms table (2006/01- )

Hint:

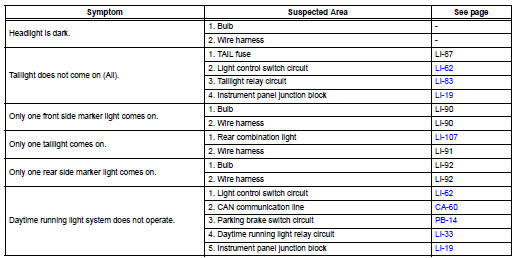

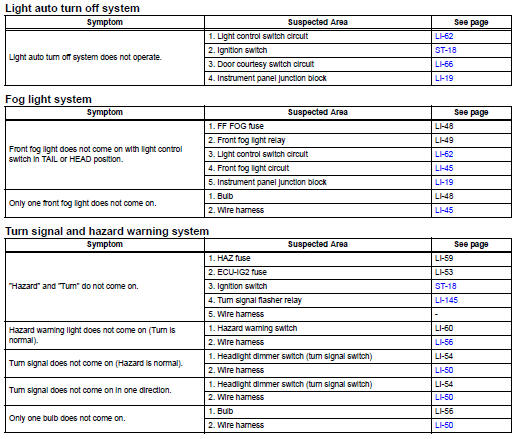

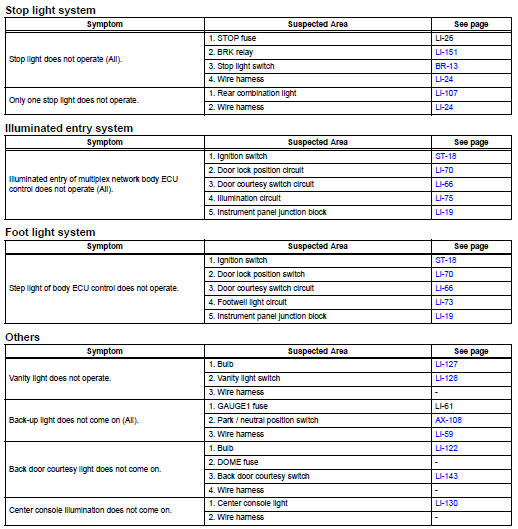

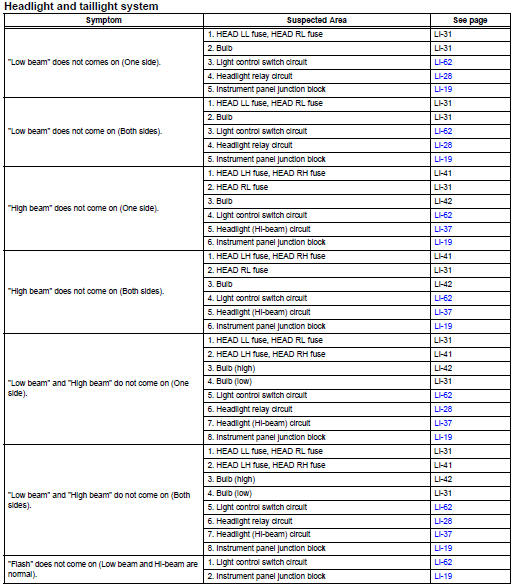

Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

Toyota RAV4. Problem symptoms table (2006/01- )


Toyota RAV4. Problem symptoms table (2006/01- )


Toyota RAV4. Problem symptoms table (2006/01- )


Toyota RAV4. Problem symptoms table (2006/01- )


Problem symptoms table (2005/11-2006/01)
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column of th ...

Terminals of ecu
Check instrument panel junction block (main body ecu) Measure the voltage of the connectors. If the result is not as specified, the junction block (main body ecu) may have ...
