Toyota RAV4 (XA40) 2013-2018 Service Manual: Terminals of ecu

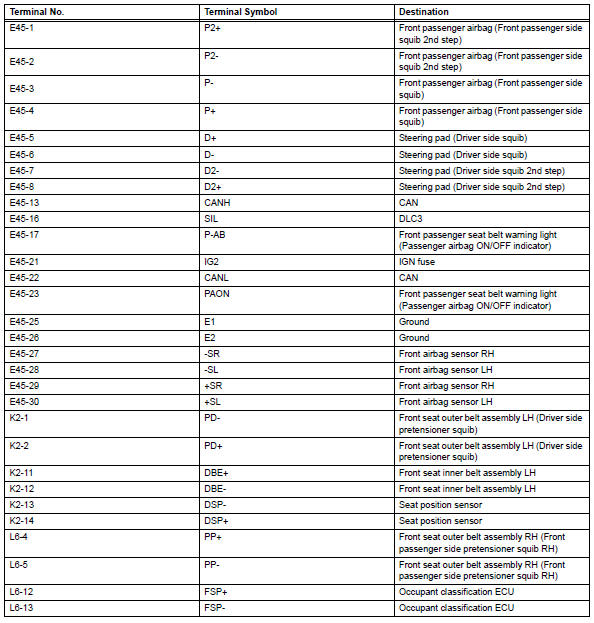

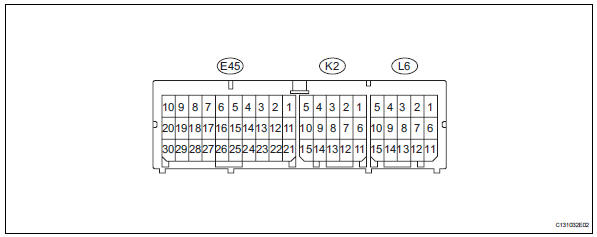

  1. Center airbag sensor assembly (w/ curtain shield airbag)

Toyota RAV4. Center airbag sensor assembly (w/ curtain shield airbag)


Toyota RAV4. Center airbag sensor assembly (w/ curtain shield airbag)


Toyota RAV4. Center airbag sensor assembly (w/ curtain shield airbag)

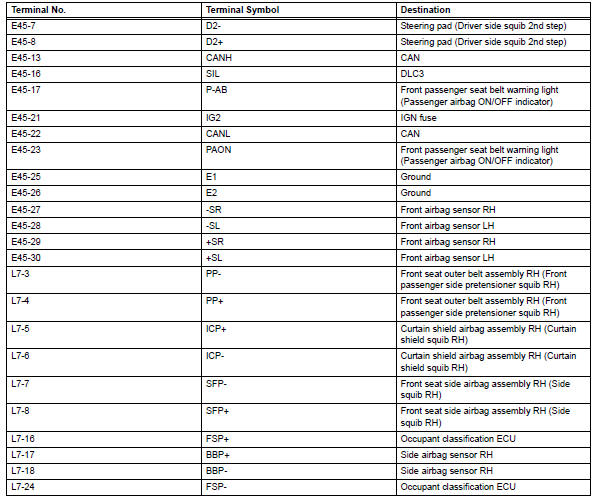

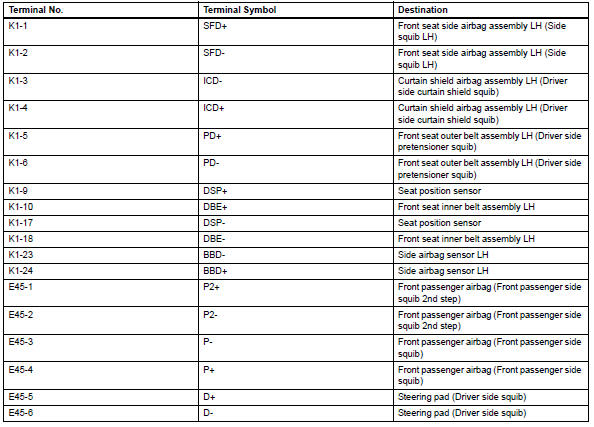

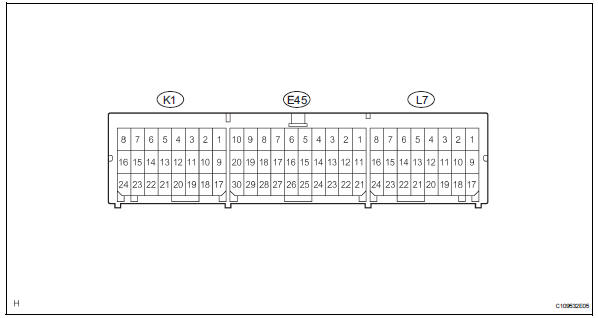

  1. Center airbag sensor assembly (w/o curtain shield airbag)

Toyota RAV4. Center airbag sensor assembly (w/o curtain shield airbag)


Toyota RAV4. Center airbag sensor assembly (w/o curtain shield airbag)


Problem symptoms table
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column ...

Diagnosis system
Description The center airbag sensor controls the functions of the supplemental restraint system (srs) on the vehicle. Data of the srs can be read in the data link connector 3 (dlc3) of the ...
