Toyota RAV4 (XA40) 2013-2018 Service Manual: Transmitter id not registered in main mode

Toyota RAV4. Transmitter id not registered in main mode


Description

Toyota RAV4. Transmitter id not registered in main mode


Inspection procedure

Notice:

It is necessary to register an id code after replacing the tire pressure warning valve and transmitter and/or the tire pressure monitor ecu (see page tw-9).

Hint:

Set the tire pressure to the specified value.

Standard pressure: 220 kpa (2.2 Kgf/cm2, 32 psi)

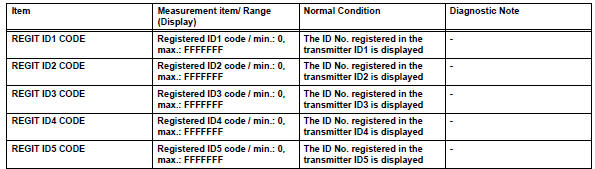

  1. Read value of intelligent tester (registered id codes)

  1. Check the data list for proper functioning of the registered id codes.

Tire pressure warning ecu

Toyota RAV4. Tire pressure warning ecu


Ok: the registered transmitter id codes are displayed on the intelligent tester screen.



  1. Perform registration (transmitter id)

  1. Register the transmitter ids for all the wheels (see page tw-9).
  2. Set the pressure of each tire to the specified value.

    Standard pressure: 220 kpa (2.2 Kgf/cm2, 32 psi)

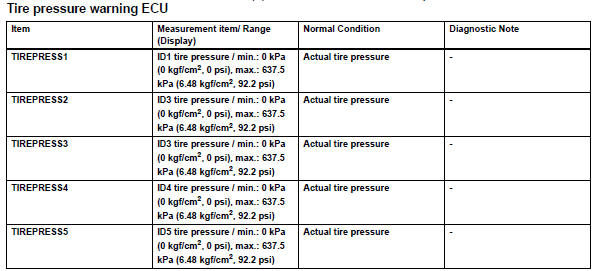

  1. Read value of intelligent tester (tire pressure)

  1. Check the data list tire pressure value.

Toyota RAV4. Read value of intelligent tester (tire pressure)


Ok: all tire pressure readings are equal to the actual tire pressure.

Notice:

It may take up to 1 minute to display the tire pressure data.



End

Abnormal temperature inside
Description The tire pressure warning valve and transmitter measures tire internal temperature as well as tire pressure, and transmits the information to the tire pressure monitor receiver a ...

Receiver error
Description Wiring diagram Inspection procedure Notice: It is necessary to register an id code after replacing the tire pressure warning valve abd transmitter and/or the tire pressu ...
