Toyota RAV4 (XA40) 2013-2018 Service Manual: Diagnostic trouble code chart
Hint:

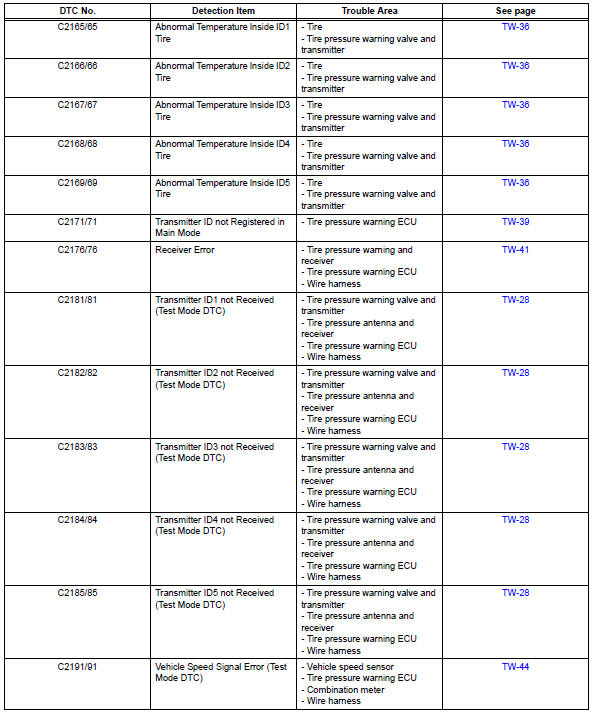

If a trouble code is displayed during the dtc check, check the circuit listed for that code in the table below. Then proceed to the appropriate page.
- Transmitter id
- No signal from transmitter id
- Transmitter id
- Abnormal temperature inside
- Transmitter id not registered in main mode
- Receiver error
- Vehicle speed signal error (test mode dtc)
- Tire pressure warning light circuit
- Ecu power source circuit
Data list / active test
Read data list
Hint:
Using the intelligent tester's data list allows switch,
actuator and other item values to be read without
removing any parts. Reading the data list early in
troubleshoot ...
Transmitter id
Description
The tire pressure warning valve and transmitter that is installed in the
tires and wheels measures the air
pressure of the tires. The measured values are transmitted to the tire pr ...
