Toyota RAV4 (XA40) 2013-2018 Service Manual: Transmitter id

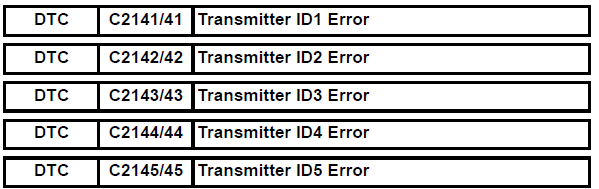

![Toyota RAV4. Transmitter id](images/books/256/40/2.htm12.gif)
Description

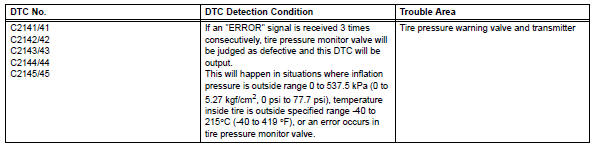

![Toyota RAV4. Transmitter id](images/books/256/40/2.htm35.jpg)
Hint:
It is necessary to perform the procedure to identify the tire pressure
monitor valve that is malfunctioning
because it cannot be identified by the output dtc.
Inspection procedure
Notice:
It is necessary to register an id code after replacing the tire pressure
warning valve and
transmitter and/or the tire pressure warning ecu (see page tw-9).
- Identify transmitter (corresponding to dtc)
- Set the pressure of each tire to the specified value.
Standard pressure:
220 kpa (2.2 Kgf /cm2, 32 psi)
- Connect the intelligent tester (with can vim) to the
dlc3.
- Turn the ignition switch on.
- Select tirepress by following the prompts displayed
on the intelligent tester.

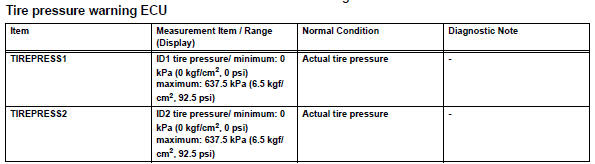

![Toyota RAV4. Identify transmitter (corresponding to dtc)](images/books/256/40/2.htm36.jpg)

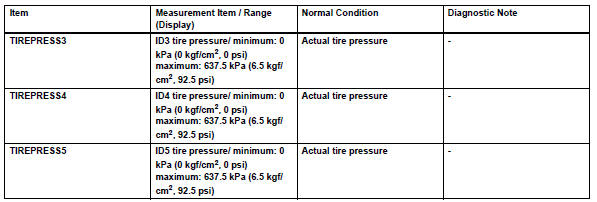

![Toyota RAV4. Identify transmitter (corresponding to dtc)](images/books/256/40/2.htm38.jpg)
Notice:
It may take up to 1 minute to display the updated
data.
- Rapidly release the tire pressure from any tire by 40 kpa
(0.4 Kgf/cm2, 5.8 Psi) for 30 seconds or more.
Hint:
- Identify the malfunctioning tire pressure warning valve
and transmitter by rapidly releasing the tire pressures
from each tire.
- Record which tirepress data (id1 to id5)
corresponds to each tire.
- Check the data list.
Result
![](images/books/256/40/2.htm39.jpg)
Notice:
- When the tirepress data (ids 1 to 5) changes,
reset the tire pressure of the tires to the specified
value, rotate the tires 90 to 270° and recheck.
- When the transmitter is normal, record the tire
location and the transmitter id.
- When one of the tirepress data (ids 1 to 5) changes,
repeat the same procedure on the rest of the tires one by
one to identify which tire pressure warning valve and
transmitter the dtc corresponds to.
- When the tirepress data (ids 1 to 5) has been
changed, identify the malfunctioning tire pressure
warning valve and transmitter by using recorded id
numbers and the output dtc.
- Set the pressure of each tire to the specified value.
Standard pressure:
220 kpa (2.2 Kgf /cm2, 32 psi)
Replace tire pressure warning valve and transmitter
