Toyota RAV4 Service Manual: Abnormal temperature inside

Toyota RAV4. Abnormal temperature inside


Description

The tire pressure warning valve and transmitter measures tire internal temperature as well as tire pressure, and transmits the information to the tire pressure monitor receiver along with the transmitter id.

If the measured temperature is out of the specified range, the tire pressure warning ecu recognizes it as a malfunction, outputs dtcs, and blinks the tire pressure warning light.

Toyota RAV4. Abnormal temperature inside


Hint:

It is necessary to perform the procedure to identify the tire pressure warning valve and transmitter that is malfunctioning because it cannot be identified by the output dtc.

Inspection procedure

Notice:

It is necessary to register an id code after replacing the tire pressure warning valve and transmitter and/or the tire pressure warning ecu (see page tw-9).

  1. Identify transmitter (corresponding to dtc)

  1. Set the pressure of each tire to the specified value.

    Standard pressure: 220 kpa (2.2 Kgf/cm2, 32 psi)

  2. Connect the intelligent tester (with can vim) to the dlc3.
  3. Turn the ignition switch on.
  4. Select tirepress by following the prompts displayed on the intelligent tester.

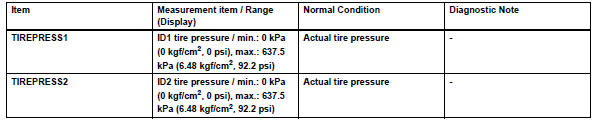

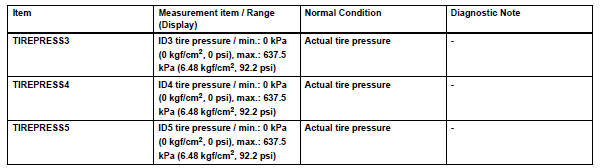

Tire pressure warning ecu

Toyota RAV4. Tire pressure warning ecu


Toyota RAV4. Tire pressure warning ecu


  1. Rapidly release the tire pressure from any tire by 40 kpa (0.4 Kgf/cm2, 5.8 Psi) for 30 seconds or more.

Hint:

  1. Check the data list.

Result


Notice:

  1. When one of the tirepress data (ids 1 to 5) changes, repeat the same procedure on the rest of the tires (one by one) to identify which tire pressure warning valve and transmitter the dtc corresponds to.
  2. When the tirepress data (ids 1 to 5) has been changed, identify the malfunctioning tire pressure warning valve and transmitter by using recorded id numbers and output dtc.
  3. Set the pressure of each tire to the specified value.

Standard pressure: 220 kpa (2.2 Kgf/cm2, 32 psi)


  1. Check tire

  1. Check that the tire is not punctured, and there is no indication of air pressure drop.

Ok: tire is normal.



Replace tire pressure warning valve and transmitter
