Toyota RAV4 (XA40) 2013-2018 Service Manual: Components

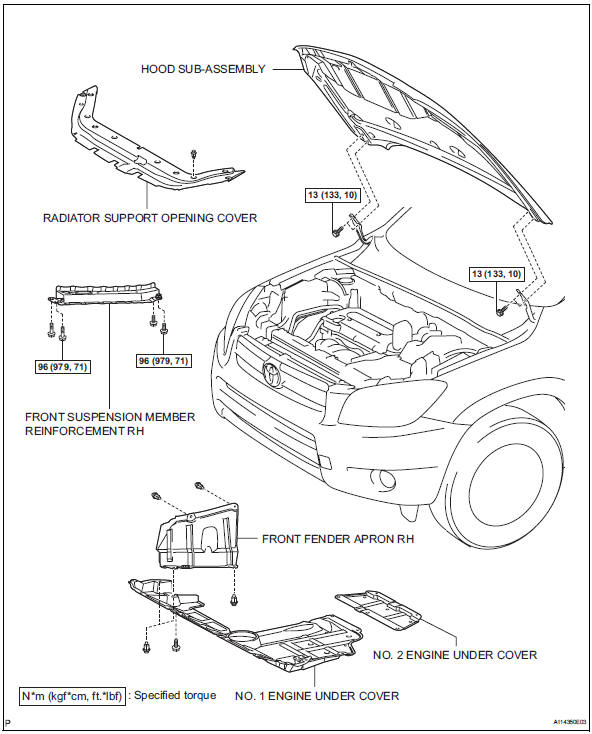

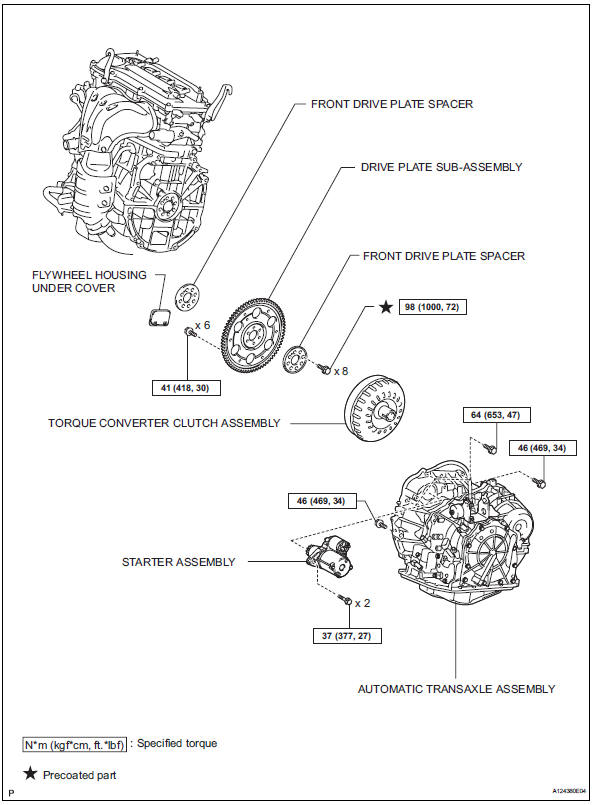

Toyota RAV4. Components

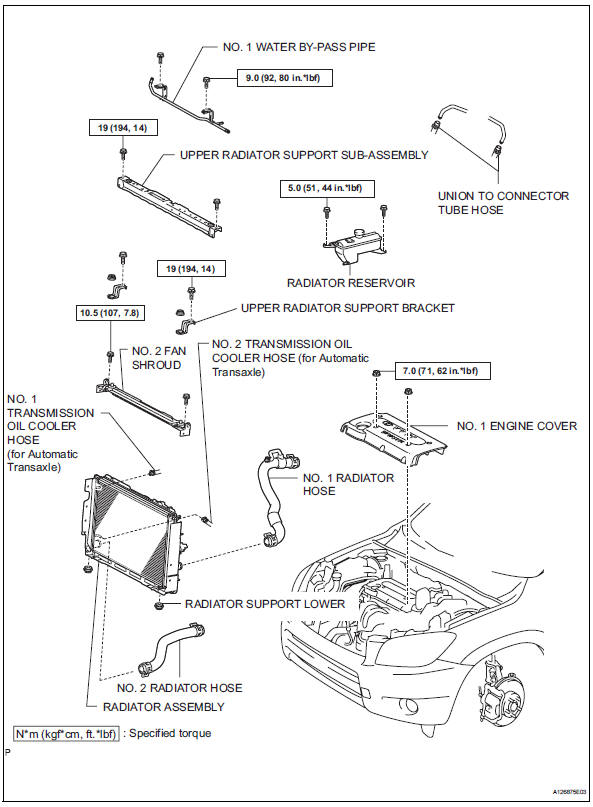

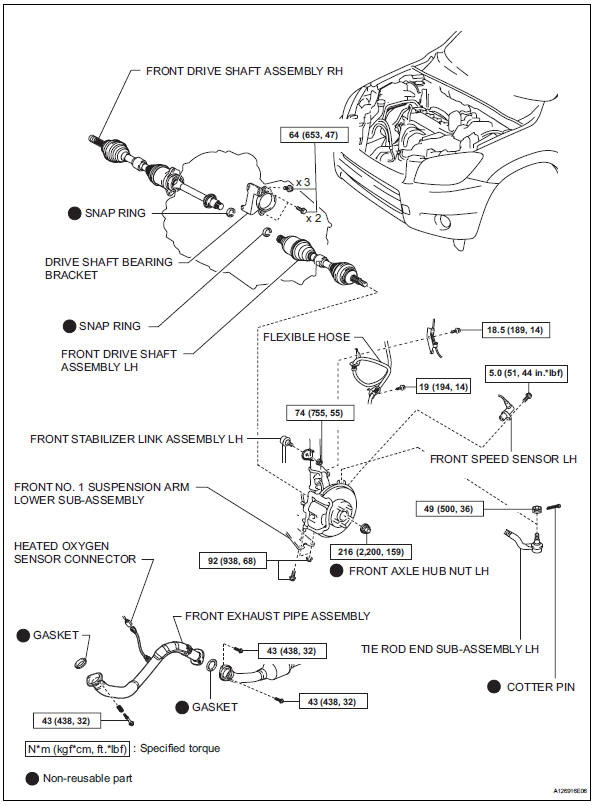

Toyota RAV4. Components

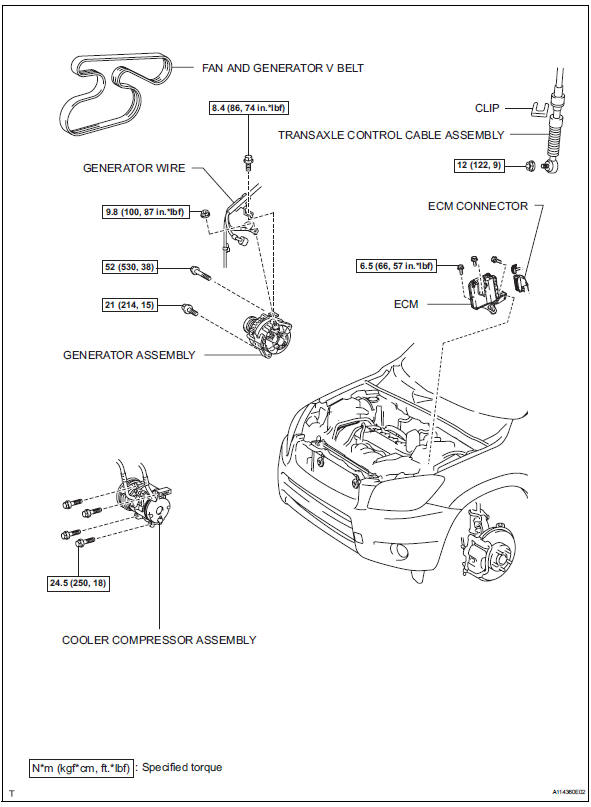

Toyota RAV4. Components

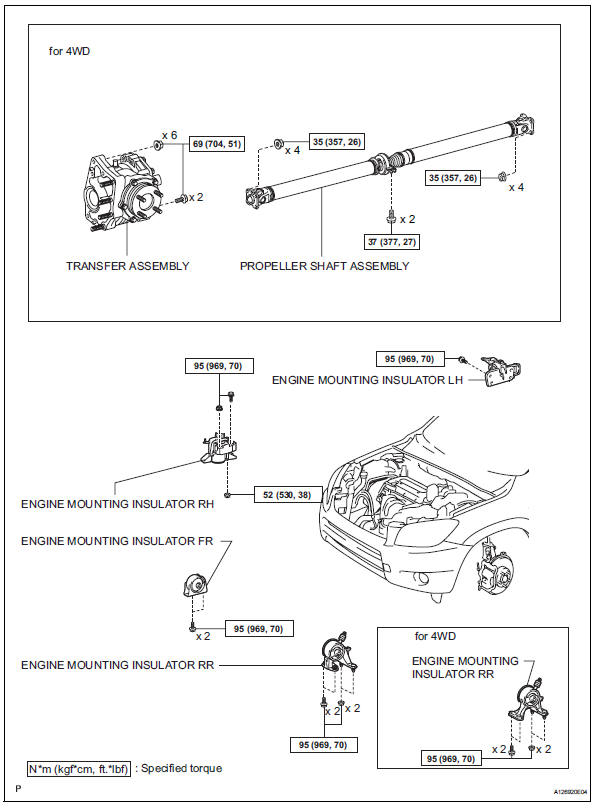

Toyota RAV4. Components

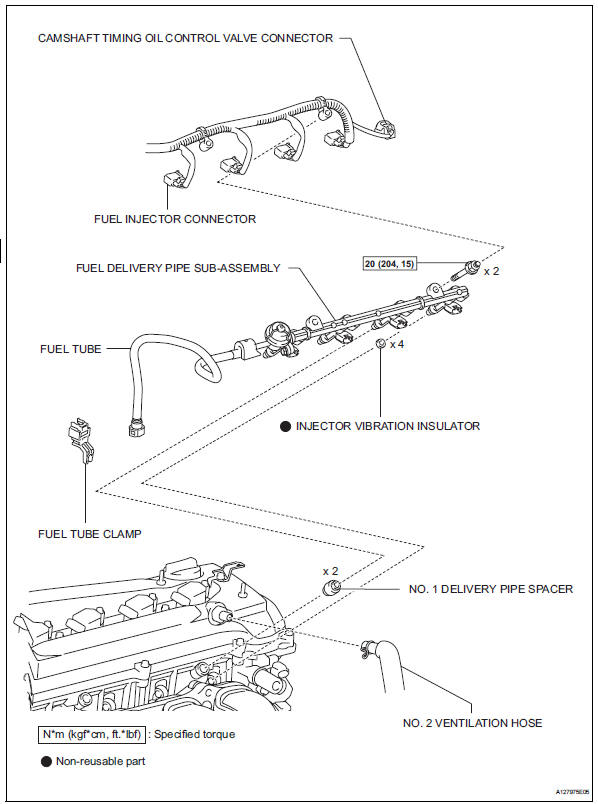

Toyota RAV4. Components

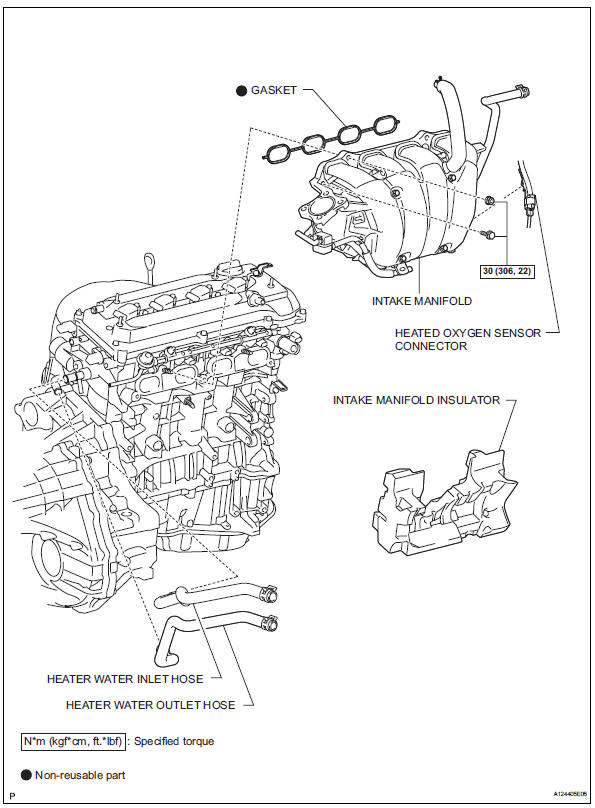

Toyota RAV4. Components

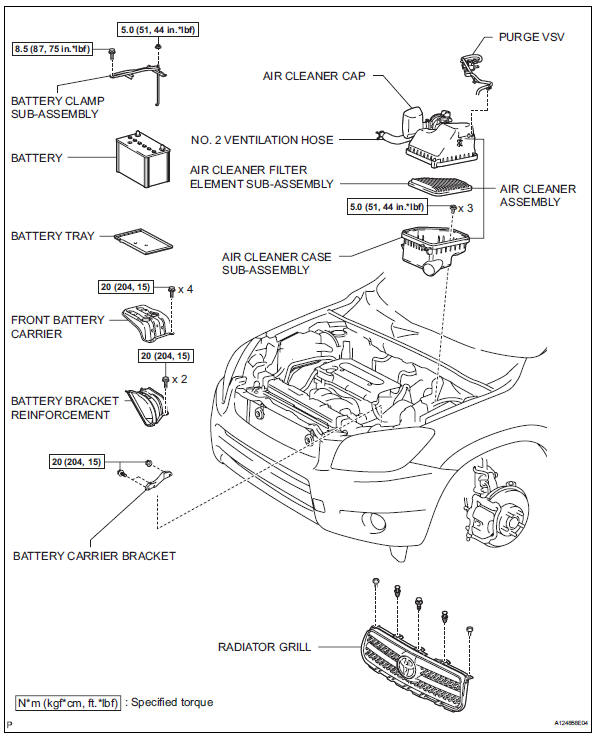

Toyota RAV4. Components

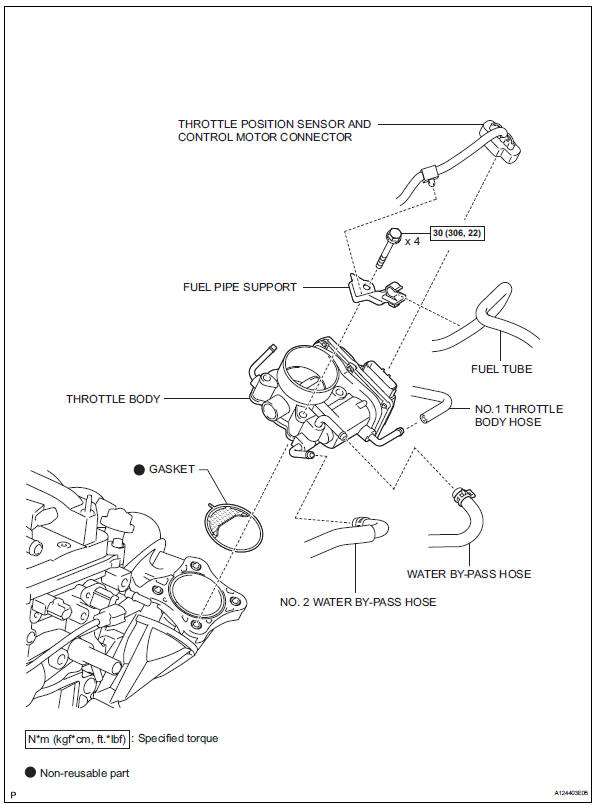

Toyota RAV4. Components


Toyota RAV4. Components


Toyota RAV4. Components


Eanzg-ifnee engine mechanical engine assembly
...

Removal
Discharge fuel system pressure (see page fu-9) Disconnect cable from negative battery terminal Caution: Wait at least 90 seconds after disconnecting the cable from the negative (-) batte ...
