Toyota RAV4 (XA40) 2013-2018 Service Manual: Disposal
Hint:
When scrapping a vehicle equipped with an srs or disposing
of the front passenger side knee airbag, be sure to deploy the
airbag first in accordance with the procedure described
below. If any abnormality occurs with the airbag deployment,
contact the service dept. Of toyota motor sales,
u.S.A., Inc.
Caution:
- Never dispose of a front passenger airbag with an
unactivated airbag.
- The airbag produces a loud, exploding sound when it
activates. Perform the operation where it will not be a
nuisance to people nearby.
- When activating the airbag, always use the specified
sst (srs airbag deployment tool).
- Perform procedures in a place away from electrical
interference.
- When activating the airbag, stand at least 10 m (33 ft.)
Away from the airbag.
- The airbag becomes very hot when it is deployed. Do
not touch it for at least 30 minutes after activation.
- Use gloves and safety glasses when handling a
deployed airbag.
- Do not apply water to a deployed airbag.
- Always wash your hands with water after completing
the operation.
- Dispose of front passenger airbag assembly together with vehicle
Hint:
Prepare a battery as the power source to deploy the
airbag.
- Check if sst is functioning properly.
Sst 09082-00700
- Connect the sst's red clip to the positive (+)
battery terminal and the black clip to the
negative (-) battery terminal.
Hint:
The yellow connector will be used to connect to
another sst in a later step.
- Press the sst activation switch, and check that
the led of the sst activation switch
illuminates.
Caution:
If the led illuminates when the activation
switch is not pressed, sst may have a
malfunction, in which case that sst should
not be used
- Disconnect sst from the battery.
- Follow the "precaution" (see page rs-1).
- Disconnect the cable from the negative (-) battery
terminal.
Caution:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery terminal to
prevent airbag and seat belt pretensioner
activation.
- Remove the glove compartment door (see page ip-
6).
- Install sst.
- Disconnect the front passenger airbag
connector.
Notice:
When handling the airbag connector, do not
damage the airbag wire harness.
- Connect sst (a) to sst (b). Then connect
sst (b)'s connector to the cable.
Sst 09082-00700, 09082-00780
Notice:
To avoid damaging the sst connector and
wire harness, do not lock the secondary
lock of the twin lock.
- Move sst at least 10 m (33 ft.) Away from the
front side window.
- Maintaining enough clearance for the sst wire
harness in the front side window, close all
doors and windows of the vehicle.
Notice:
Take care not to damage the sst wire
harness.
- Connect the sst's red clip to the positive (+)
battery terminal and the black clip to the
negative (-) battery terminal.
- Deploy the airbag.
- Check that no one is inside the vehicle or within
a 10 m (33 ft.) Radius of the vehicle.
- Press the sst activation switch and deploy the
airbag.
Caution:
- When deploying the airbag, make sure
that no one is near the vehicle.
- The airbag becomes extremely hot when
it is deployed. Do not touch it for at least
30 minutes after deployment.
- Use gloves and safety glasses when
handling a deployed airbag.
- Do not apply water to a deployed airbag.
- Always wash your hands with water after
completing the operation.
Hint:
The airbag is deployed as the sst activation
switch led illuminates.
- Dispose of only front passenger airbag assembly
Notice:
- When disposing of the airbag, never use the
customer's vehicle to deploy the airbag.
- Be sure to follow the procedure detailed below
when deploying the airbag.
Hint:
Prepare a battery as the power source to deploy the
airbag.
- Check if sst is functioning properly.
Sst 09082-00700
- Connect the sst's red clip to the positive (+)
battery terminal and the black clip to the
negative (-) battery terminal.
Hint:
The yellow connector will be used to connect to
another sst in a later step.
- Press the sst activation switch, and check that
the led of the sst activation switch
illuminates.
Caution:
If the led illuminates when the activation
switch is not pressed, sst may have a
malfunction, in which case that sst should
not be used.
- Disconnect sst from the battery.
- Remove the front passenger airbag (see page rs-
350).
Caution:
- When removing the airbag, work must be
started 90 seconds after the ignition switch is
turned off and after the cable is
disconnected from the negative (-) battery
terminal.
- When storing the airbag, keep the airbag
deployment side facing upward.
- Using service wire harnesses for the vehicle, tie
down the airbag to a tire.
Wire harness:
stripped wire harness section
1.25 Mm2 or more (0.0019 In.2 Or more)
Notice:
Use a tire that you are planning to throw away,
as the airbag deployment may damage the tire.
Caution:
Do not use wire harnesses that are too thin or
any other substitute items to tie down the front
passenger airbag. They may snap when the
airbag deploys. Always use vehicle wire
harnesses that have an area of at least 1.25 Mm2
(0.0019 In.2).
Hint:
To calculate the area of the stripped wire harness
section:
Area = 3.14 X diameter2 /4

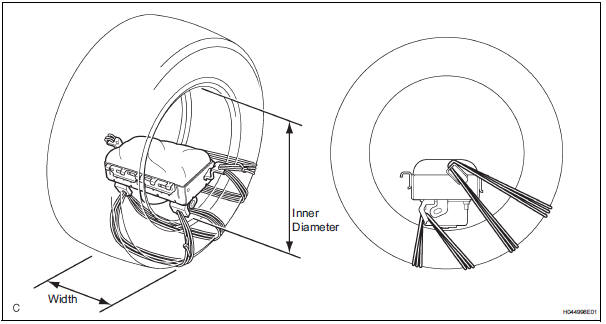

- Position the airbag inside the tire so that the
brackets contact the tire.
Tire size:
width minimum:
185 mm (7.28 In.)
Inner diameter minimum:
360 mm (14.17 In.)
- Wind 3 wire harnesses at least twice around
the airbag brackets and tire.
Caution:
- Tightly wind the wire harnesses around
the brackets so that there is no slack.
- Make sure that the wire harnesses are
tight. If there is slack in a wire harness,
the airbag may come loose when it is
deployed.
- Always tie down the airbag with the
airbag deployment side facing inside the
tire.
- Install sst.
- Connect the sst connector to the airbag.
Sst 09082-00780
- Place the tires.
- Place at least 2 tires under the tire to which the
airbag is tied.
- Place at least 2 tires on top of the tire to which
the airbag is tied. The top tire should have a
disc wheel installed.
Notice:
- Do not place the sst connector under
the tire as the connector may be
damaged.
- Use a disc wheel that you are planning to
throw away, as the airbag deployment
will damage the disc wheel.
- Use tires that you are planning to throw
away, as the airbag deployment may
damage the tires.
- Tie the tires together with 2 wire harnesses.
- Install sst.
- Connect the sst connector.
Sst 09082-00700
Notice:
To avoid damaging the sst connector and
wire harness, do not lock the secondary
lock of the twin lock. Also, secure some
slack for the sst wire harness inside the
tire.
- Deploy the airbag.
- Connect the sst's red clip to the positive (+)
battery terminal and the black clip to the
negative (-) battery terminal.
- Check that no one is within a 10 m (33 ft.)
Radius of the airbag.
- Press the sst activation switch and deploy the
airbag.
Caution:
When deploying the airbag, make sure that
no one is near the tires.
Hint:
The airbag is deployed as the sst activation
switch led illuminates.
- Dispose of the airbag.
Caution:
- The airbag becomes extremely hot when it is
deployed. Do not touch it for at least 30
minutes after deployment.
- Use gloves and safety glasses when handling
a deployed airbag.
- Do not apply water to a deployed airbag.
- Always wash your hands with water after
completing the operation.
- Remove the airbag from the tire.
- Place the airbag in a plastic bag, tie it tightly
and dispose of it in the same way as other
general parts.
Caution:
Be sure to read the precautionary notices concerning the
srs airbag system before servicing it (see page rs-1).
