Toyota RAV4 Service Manual: Front passenger airbag assembly

Toyota RAV4 Service Manual / Supplemental restraint system / Front passenger airbag assembly

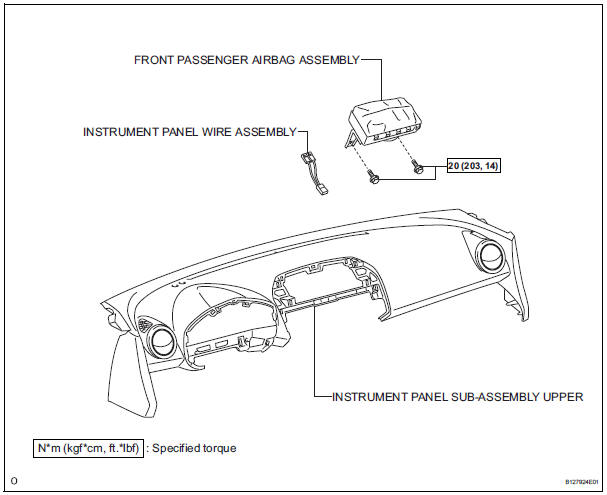

Components

Toyota RAV4. Front passenger airbag assembly


On-vehicle inspection

  1. Check front passenger airbag assembly (vehicle not involved in collision and airbag not deployed)

Toyota RAV4. Check front passenger airbag assembly (vehicle not involved in collision and airbag not deployed)


  1. Perform a diagnostic system check (see page rs- 49).
  2. With the front passenger airbag installed on the vehicle, perform a visual check: check for cuts, cracks or discoloration on the front passenger airbag surface and in the grooved portion.

If any of the defects mentioned above are present, replace the front passenger airbag with a new one.

Caution:

For removal and installation of the front passenger airbag, be sure to follow the correct procedures.

  1. Check front passenger airbag assembly (vehicle involved in collision and airbag not deployed)

Toyota RAV4. Check front passenger airbag assembly (vehicle involved in collision and airbag not deployed)


Toyota RAV4. Check front passenger airbag assembly (vehicle involved in collision and airbag not deployed)


  1. Perform a diagnostic system check (see page rs- 49).
  2. With the front passenger airbag removed from the vehicle, perform a visual check:

If any of the defects mentioned above are present, replace the front passenger airbag with a new one.

Caution:

For removal and installation of the front passenger airbag, be sure to follow the correct procedures.
