Toyota RAV4 (XA40) 2013-2018 Service Manual: Ebxotdeyrior radiator grille (for 2gr-fe)

Toyota RAV4 (XA40) 2013-2018 Service Manual / Exterior / Ebxotdeyrior radiator grille (for 2gr-fe)

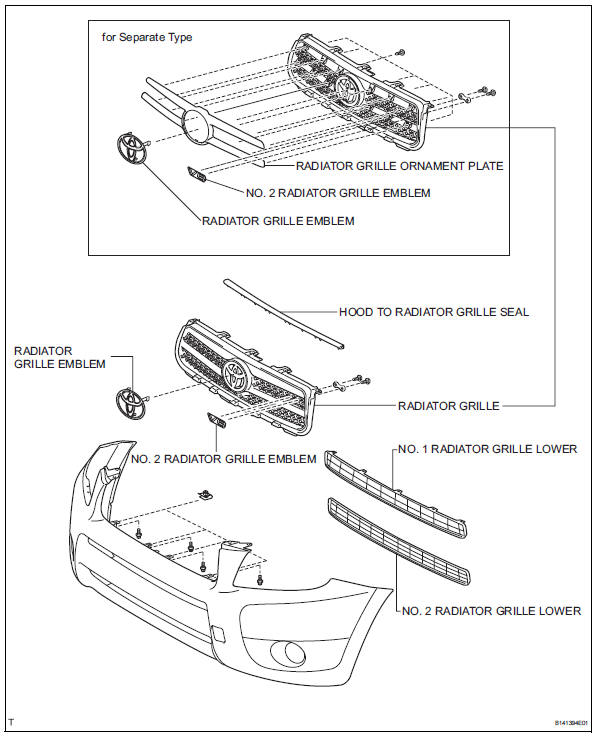

Components

Toyota RAV4. Components


Reassembly
Hint: When installing the ornament plate and emblem, heat the radiator grille, ornament plate and emblem using a heat light. Standard heating temperature Notice: Do not heat the emblem base and ...

Removal
Remove radiator grille sub-assembly Remove the 4 bolts and 4 nuts. Detach the 6 claws and remove the radiator grille. Remove no. 1 Radiator grille lower Detach the 1 ...
