Toyota RAV4 (XA50) 2019-2026 Owners Manual: Emergency flashers
The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc.
Operating instructions

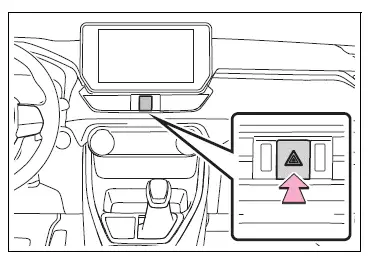

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
â– Emergency flashers
- If the emergency flashers are used for a long time while the engine is not running, the battery may discharge.
- If any of the SRS airbags deploy
(inflate) or in the event of a strong
rear impact, the emergency flashers
will turn on automatically.
The emergency flashers will turn off automatically after operating for approximately 20 minutes. To manually turn the emergency flashers off, press the switch twice. (The emergency flashers may not turn on automatically depending on the force of the impact and conditions of the collision.)
If your vehicle has to be stopped in an emergency
Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following procedure:
Stopping the vehicle
1. Steadily step on the brake
pedal w ...
