Toyota RAV4 (XA50) 2019-2024 Owners Manual: Switches

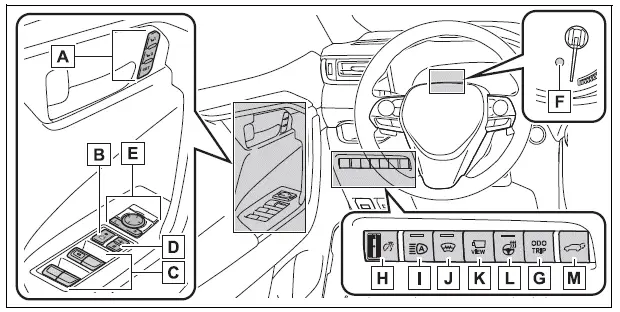

Pictorial index


  1. Driving position memory switches*1
  2. Window lock switch
  3. Power window switches
  4. Door lock switches
  5. Outside rear view mirror switches
  6. "ODO TRIP" switch (vehicles with 7-inch multi-information display)
  7. "ODO TRIP" switch (vehicles with 12.3-inch multi-information display)
  8. Instrument panel light control dial
  9. Automatic High Beam switch
  10. Windshield wiper de-icer switch*1
  11. Camera switch*1, 2
  12. Heated steering wheel switch*1
  13. Power back door switch*1

*1:If equipped
*2:Refer to "MULTIMEDIA OWNER'S MANUAL".

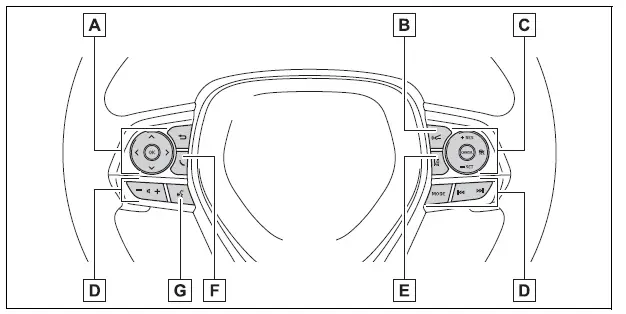

Pictorial index


  1. Meter control switches
  2. Vehicle-to-vehicle distance switch
  3. Cruise control switches Dynamic radar cruise control with full-speed range
  4. Audio remote control switches*
  5. LTA (Lane Tracing Assist) switch
  6. Phone switch*
  7. Talk switch*

*: Refer to "MULTIMEDIA OWNER'S MANUAL".

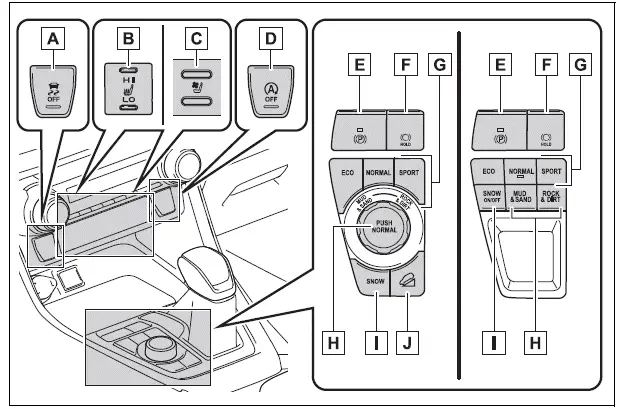

Pictorial index


  1. VSC OFF switch
  2. Front seat heater switches*
  3. Front seat heater/ventilator switches*
  4. Stop & Start cancel switch*
  5. Parking brake switch Applying/releasing Precautions against winter season Warning buzzer/message
  6. Brake hold switch
  7. Driving mode select switch
  8. Multi-terrain Select switch*
  9. SNOW mode switch*
  10. DAC" switch*

*: If equipped
