Toyota RAV4 (XA50) 2019-2025 Owners Manual: Exterior

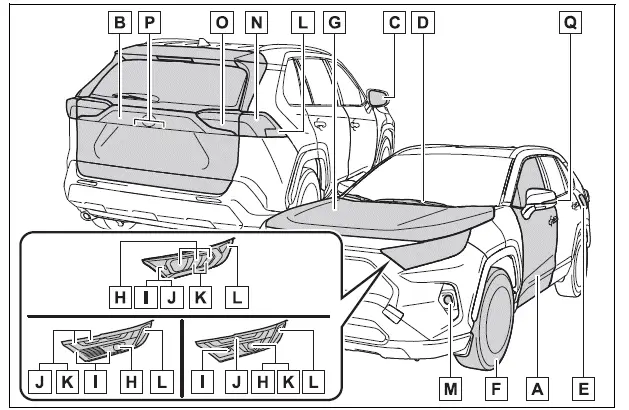

Pictorial index


The shape of the headlights may differ depending on the grade, etc.

  1. Side doors Locking/unlocking Opening/closing the side windows Locking/unlocking by using the key Warning messages
  2. Back door Locking/unlocking Opening from inside the cabin* Opening from outside
    Warning messages
  3. Outside rear view mirrors Adjusting the mirror angle Folding the mirrors
    Defogging the mirrors*
  4. Windshield wipers Precautions against winter season To prevent freezing (windshield wiper de-icer)* Precautions against car wash (Rain-sensing windshield wipers)* Replacing the wiper insert
  5. Fuel filler door Refueling methodv Fuel type/fuel tank capacity
  6. Tires Tire size/inflation pressure Winter tires/tire chain
    Checking/rotation/tire pressure warning system* Coping with flat tires
  7. Hood Opening
    Engine oil
    Coping with overheat
    Warning messages
  8. Headlights
  9. Turn signal lights
  10. Parking lights
  11. Daytime running lights
  12. Side marker lights
  13. Fog lights*
  14. Stop lights/tail lights/turn signal lights
  15. Tail lights
    Back-up lights
    Shifting the shift lever to R
  16. License plate lights Side turn signal lights*

*: If equipped
