Toyota RAV4 (XA40) 2013-2018 Service Manual: Fail-safe chart

Hint:

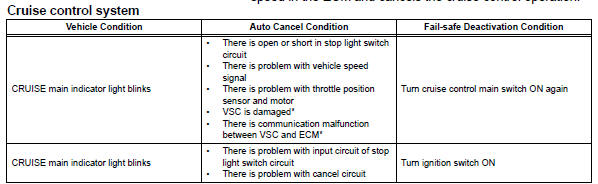

If the following conditions are detected while the cruise control is in operation, the system clears the stored vehicle speed in the ecm and cancels the cruise control operation.

Toyota RAV4. Fail-safe chart


Hint:

*: W/ vsc

Dtc check / clear
Check dtc (using intelligent tester) Connect the intelligent tester (with can vim) to the dlc3. Turn the ignition switch on. Read the dtcs by following the directions on the teste ...

Data list / active tes
Read data list Hint: Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the data list early in trou ...
