Toyota RAV4 (XA40) 2013-2018 Service Manual: Installation

Notice:

Do not heat the vehicle body, emblem and name plate excessively.

Hint:

When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

Standard heating temperature


  1. Install no. 4 Back door name plate (for 4wd)

  1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface.
  2. Remove the double-sided tape from the vehicle body.
  3. Wipe off any tape adhesive residue with cleaner.
  1. If reusing the name plate:

Clean the name plate.

  1. Using a heat light, heat the name plate.
  2. Remove the double-sided tape from the name plate.
  3. Wipe off any tape adhesive residue with cleaner.
  4. Apply new double-sided tape to the name plate.
  1. Install the name plate.
  1. Using a heat light, heat the vehicle body and name plate.
  2. Remove the peeling paper from the face of the name plate.

Hint:

After removing the peeling paper, keep the exposed adhesive free from foreign matter

  1. Install the name plate.

Notice:

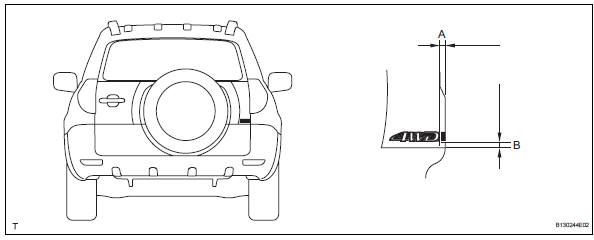

Install the name plate exactly according to the specifications below.

Toyota RAV4. Installation


Standard measurement


  1. Install no. 1 Back door emblem

  2. Install back door name plate

  3. Install no. 1 Back door emblem assembly

  1. Clean the vehicle body surface.
  1. Using a heat light, heat the vehicle body surface.
  2. Remove the double-sided tape from the vehicle body.
  3. Wipe off any tape adhesive residue with cleaner.
  1. If reusing the name plate and emblem: clean the name plate and emblem.
  1. Using a heat light, heat the name plate and emblem.
  2. Remove the double-sided tape from the name plate and emblem.
  3. Wipe off any tape adhesive residue with cleaner.
  4. Apply new double-sided tape to the name plate and emblem.
  1. Install the name plate and emblem.
  1. Using a heat light, heat the vehicle body, name plate and emblem.
  2. Remove the peeling paper from the face of the name plate and emblem.

Hint:

After removing the peeling paper, keep the exposed adhesive free from foreign matter.

  1. Install the name plate and emblem.

Notice:

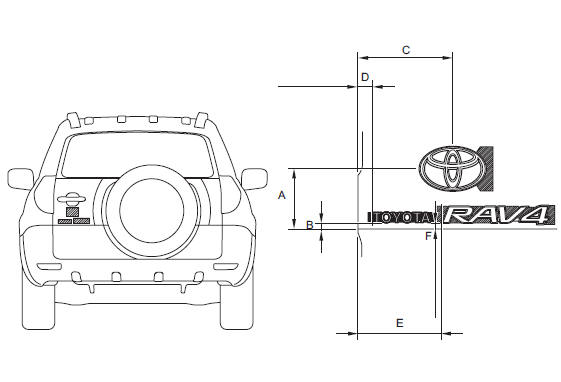

Install the name plate and emblem exactly according to the specifications below.

Toyota RAV4. Installation

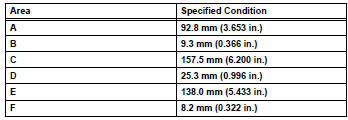

Standard measurement


Removal
Notice: Do not heat the vehicle body, emblem and name plate excessively. Hint: When removing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light. Standard ...

Ebxotdeyrior rear spoiler
Components ...
