Toyota RAV4 (XA50) 2019-2024 Owners Manual: List of storage features

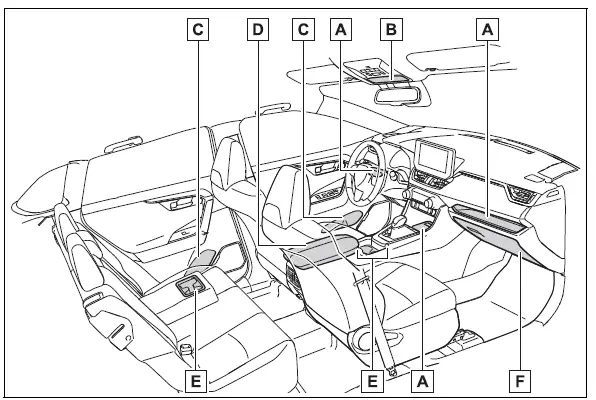

Location of the storage features

Using the storage features


  1. Open tray
  2. Auxiliary boxes
  3. Bottle holders
  4. Console box
  5. Cup holders
  6. Glove box

WARNING

■Items that should not be left in the vehicle

Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:

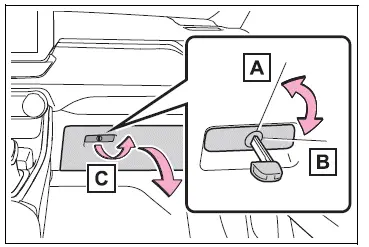

Glove box

Using the storage features


  1. Unlock with the mechanical key
  2. Lock with the mechanical key
  3. Open (pull up the lever)

WARNING

■Caution while driving

Keep the glove box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.

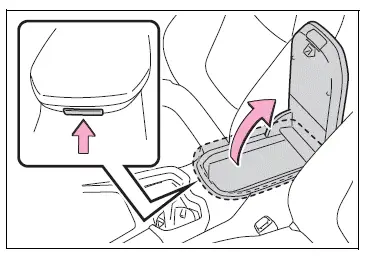

Console box

Lift the lid while pushing the button to release the lock.

Using the storage features


■Console box tray (if equipped)

The tray can be removed and stored in the bottom of the console box.

Using the storage features


WARNING

■Caution while driving

Keep the console box closed.

Injuries may result in the event of an accident or sudden braking.

Cup holders

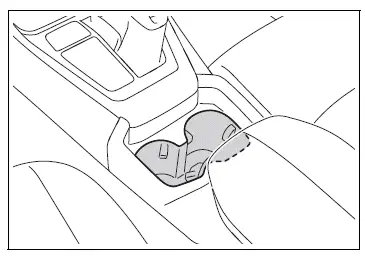

Front

Using the storage features

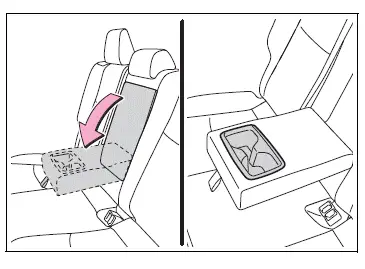

Rear

Pull the armrest down.

Using the storage features


WARNING

■Items unsuitable for the cup holders

Do not place anything other than cups or beverage cans in the cup holders.

Inappropriate items must not be stored in the cup holders even if the lid is closed.

Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. If possible, cover hot drinks to prevent burns.

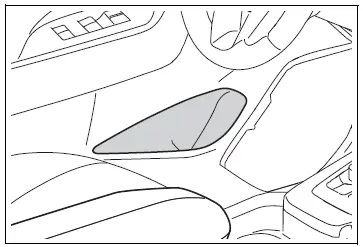

Bottle holders

Front

Using the storage features

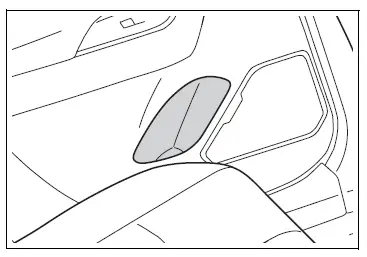

Rear

Using the storage features


■Bottle holders

WARNING

■Items unsuitable for the bottle holders

Do not place anything other than a bottle in the bottle holders.

Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.

NOTICE

■Items that should be not stowed in the bottle holders

Do not place open bottles or glass and paper cups containing liquid in the bottle holders. The contents may spill and glasses may break.

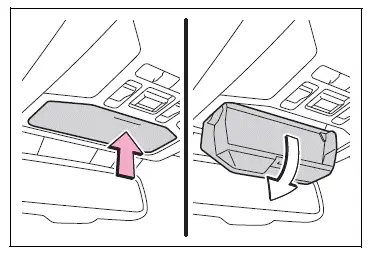

Auxiliary boxes

Push the lid.

Using the storage features


WARNING

■Caution while driving

Do not leave the auxiliary box open while driving.

Injuries may result in the event of an accident or sudden braking.

■Items unsuitable for storing

Do not store items heavier than 0.4 lb. (0.2 kg).

Doing so may cause the auxiliary box to open and the items inside may fall out, resulting in an accident.

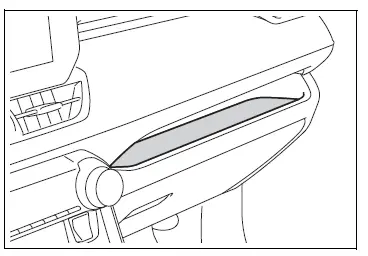

Open tray

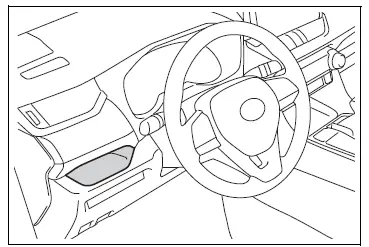

Driver's side

Using the storage features


Front passenger's side

Using the storage features

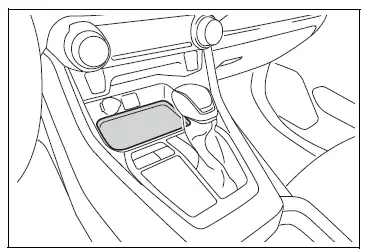

Front of console

Using the storage features


WARNING

■Items unsuitable for the open tray

Observe the following precautions when putting items in the open tray. Failure to do so may cause items to be thrown out of the tray in the event of sudden braking or steering. In these cases, the items may interfere with pedal operation or cause driver distraction, resulting in an accident.

Using the storage features
...
