Toyota RAV4 (XA40) 2013-2018 Service Manual: Motor terminal voltage malfunction

Toyota RAV4. Motor terminal voltage malfunction


Description

The power steering ecu supplies the current to the power steering motor through the motor circuit.

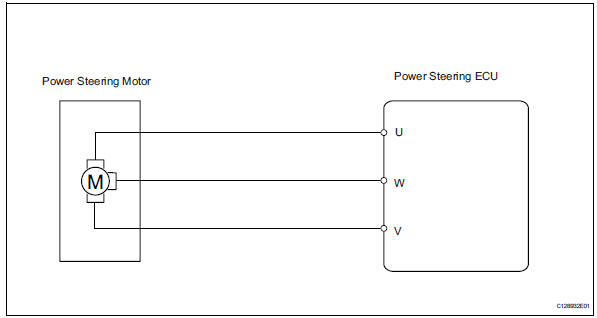

Wiring diagram

Toyota RAV4. Motor terminal voltage malfunction


Inspection procedure

  1. Read value of intelligent tester (motor voltage)

  1. Connect the intelligent tester (with can vim) to the dlc3.
  2. Turn the ignition switch on and press the intelligent tester main switch on.

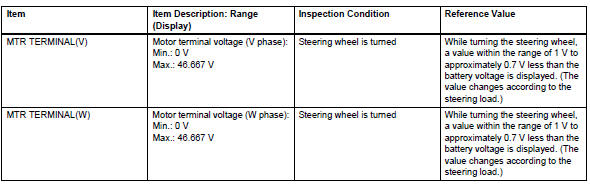

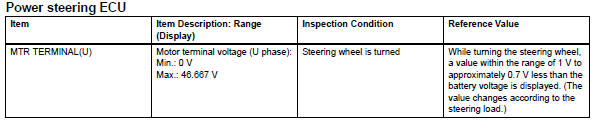

  3. Select the items "mtr terminal(u)", "mtr terminal(v)", "mtr terminal(w)" in the data list and read the value displayed on the intelligent tester.

Toyota RAV4. Read value of intelligent tester (motor voltage)


Toyota RAV4. Read value of intelligent tester (motor voltage)


Result




Replace power steering ecu
