Toyota RAV4 (XA50) 2019-2024 Owners Manual: Panoramic moon roof

Use the overhead switches to operate the panoramic moon roof and electronic sunshade.

Operating the electronic sunshade and panoramic moon roof

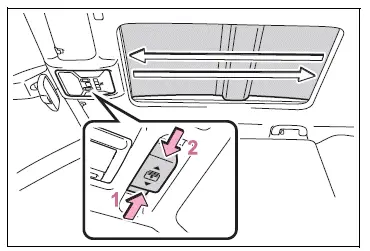

■ Opening and closing the electronic sunshade

Opening, closing the windows and moon roof


  1. Opens the electronic sunshade* Slide and hold the switch
    backward. The electronic sunshade will fully open automatically.
  2. Closes the electronic sunshade* Slide and hold the switch
    forward.

    The electronic sunshade will fully close automatically.

    If the panoramic moon roof is not fully closed, it will close fully before the electronic sunshade closes.

*: Quickly slide and release the
switch in either direction to stop the electronic sunshade partway.

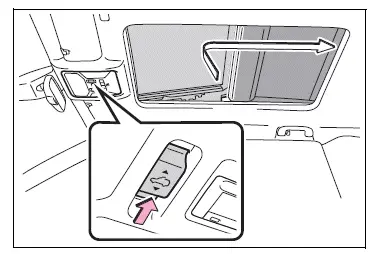

■ Tilting the panoramic moon roof up and down

Press the switch to tilt the
panoramic moon roof up.* When the panoramic moon roof is tilted up, the electronic sunshade will open to the half-open position of the roof.

*: Lightly press the switch
again to stop the panoramic moon roof partway.

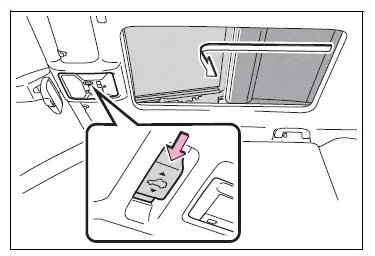

Press and hold the switch
to tilt the panoramic moon roof down.

The panoramic moon roof can be tilted down only when it is in the tilt-up position.

Opening, closing the windows and moon roof

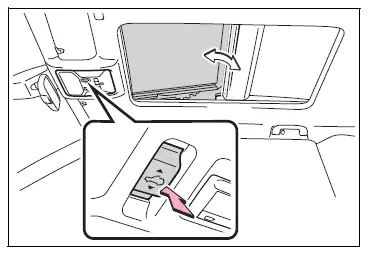

■ Opening and closing the panoramic moon roof

Opens the panoramic moon roof*

Slide and hold the switch
backward. The panoramic moon roof and electronic sunshade will open automatically.

The panoramic moon roof can be opened from the tilt-up position.

*: Quickly slide and release the
switch in either direction to stop the panoramic moon roof partway.

Opening, closing the windows and moon roof


Closes the panoramic moon roof

Slide and hold the switch
forward.

The panoramic moon roof will fully close automatically.

Opening, closing the windows and moon roof


■The panoramic moon roof can be operated when

The engine switch is in ON.

■Operating the panoramic moon roof after turning the engine off

The panoramic moon roof and electronic sunshade can be operated for approximately 45 seconds after the engine switch is turned to ACC or OFF. They cannot, however, be operated once either front door is opened.

■Jam protection function

If an object is detected between the panoramic moon roof and the frame in the following situations, travel is stopped and the panoramic moon roof opens slightly.

■Closing both the panoramic moon roof and electronic sunshade

Slide the switch forward.


The electronic sunshade will close to the half-open position and pause.

The panoramic moon roof will then fully close. Then the electronic sunshade will fully close.

■Door lock linked panoramic moon roof operation

*: These settings must be customized at your Toyota dealer.

■When the panoramic moon roof or electronic sunshade does not close normally

Perform the following procedure:

1. Stop the vehicle.

2. Turn the engine switch to ON.

3. Slide and hold the switch
or switch forward. Continue
sliding and holding the switch for approximately 10 seconds after the panoramic moon roof or electronic sunshade closes and reopens. The panoramic moon roof and electronic sunshade will start to close.* 4. Check that the panoramic moon roof and electronic sunshade are fully closed and release the switch.

If the panoramic moon roof or electronic sunshade does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Toyota dealer.

■Panoramic moon roof open reminder function

A buzzer sounds and a message is shown on the multi-information display when the engine switch is turned to OFF and the driver's door is opened with the panoramic moon roof open.

■Customization

Settings (e.g. linked door lock operation) can be changed.

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■Opening and closing the electronic sunshade

Opening, closing the windows and moon roof


■Opening the panoramic moon roof

■Opening and closing the panoramic moon roof

Opening, closing the windows and moon roof


■Jam protection function

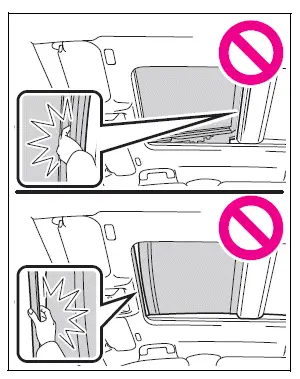

■To prevent burns or injuries

Do not touch the area between the underside of the panoramic moon roof and the electronic sunshade.

Your hand may get caught and you could injure yourself.

Also, if the vehicle is left in direct sunlight for a long time, the underside of the panoramic moon roof could become very hot and could cause burns.

NOTICE

■To prevent damage to the panoramic moon roof

■After the vehicle has been washed or rained on

Before opening the panoramic moon roof, wipe any water off the panoramic moon roof. Otherwise, water may enter the cabin when the panoramic moon roof is opened.
