Toyota RAV4 (XA40) 2013-2018 Service Manual: Power seat switch

Inspection

Toyota RAV4. Power seat switch


  1. Inspect front power seat switch

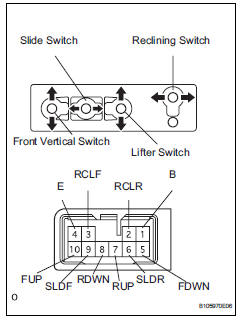

  1. Measure the resistance between the terminals when each switch is operated.

Standard resistance

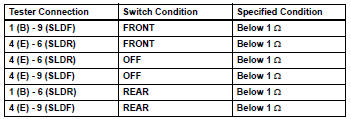

Slide switch

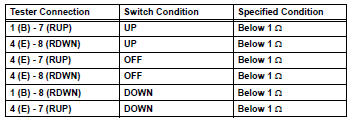

Front vertical switch

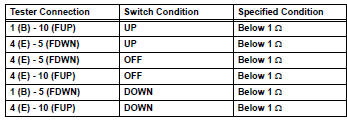

Lifter switch

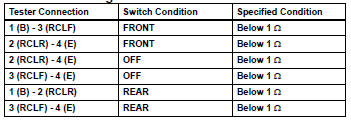

Reclining switch


If the result is not as specified, replace the switch.

Installation
Hint: Use the same procedures for the rh side and lh side. The procedures listed below are for the lh side. Install no. 2 Seat leg box protector Attach the clip to install the pr ...

Front seat frame with adjuster
Inspection Inspect front seat frame with adjuster Check operation of the seat frame (slide motor). Check if the seat frame moves smoothly when the battery is connected to the sli ...
