Toyota RAV4 (XA40) 2013-2018 Service Manual: Rear no. 1 Seat assembly (for lh side)

Toyota RAV4 (XA40) 2013-2018 Service Manual / Seat / Rear no. 1 Seat assembly (for lh side)

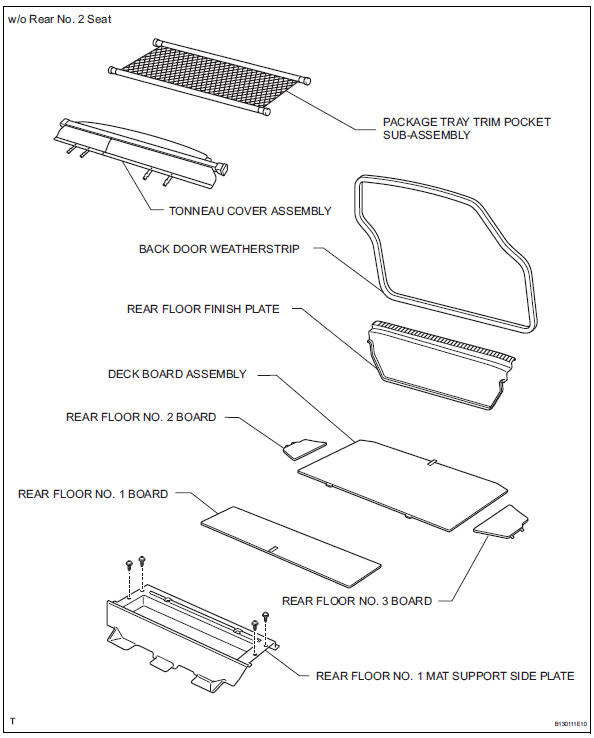

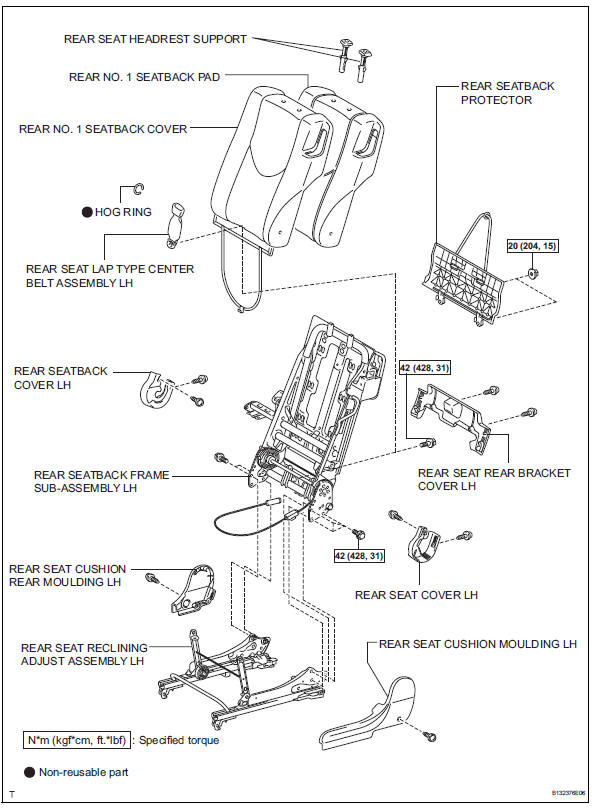

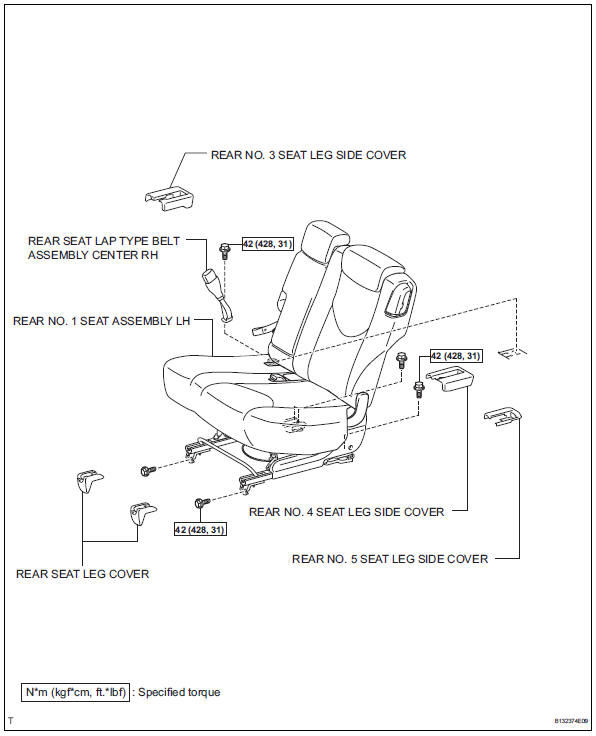

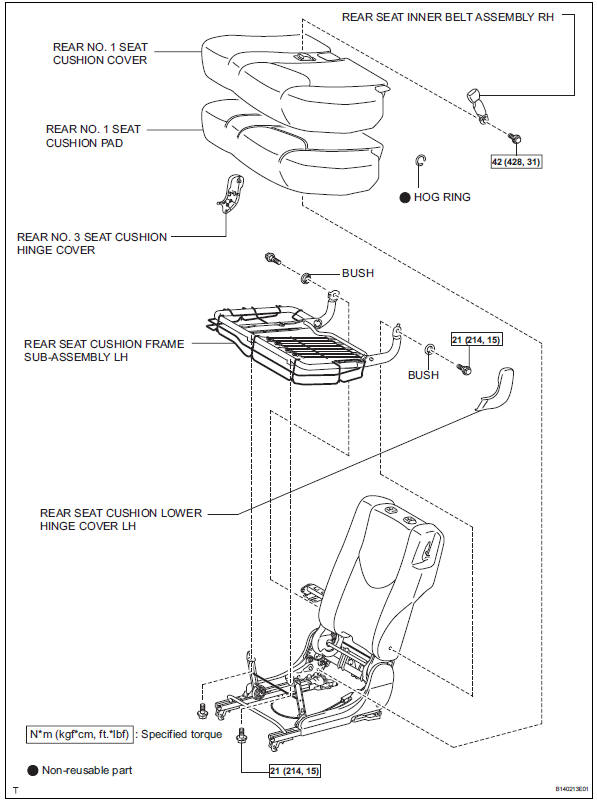

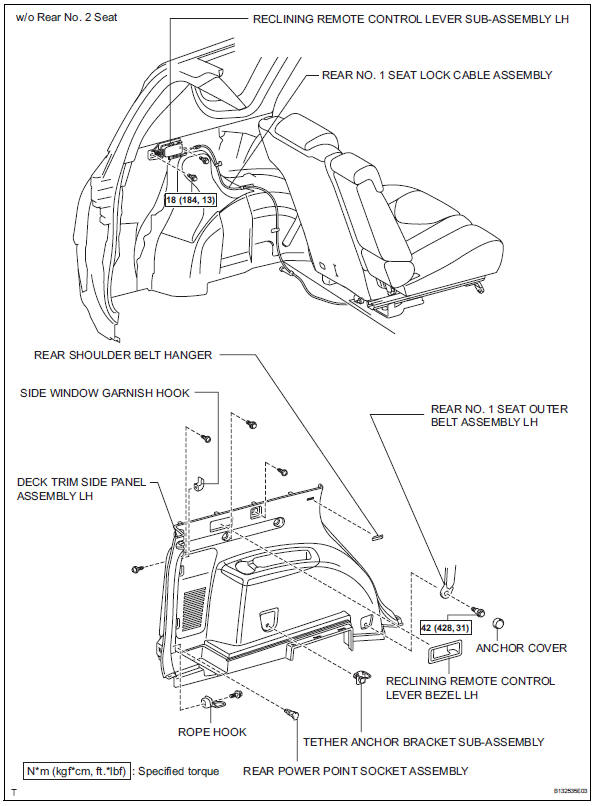

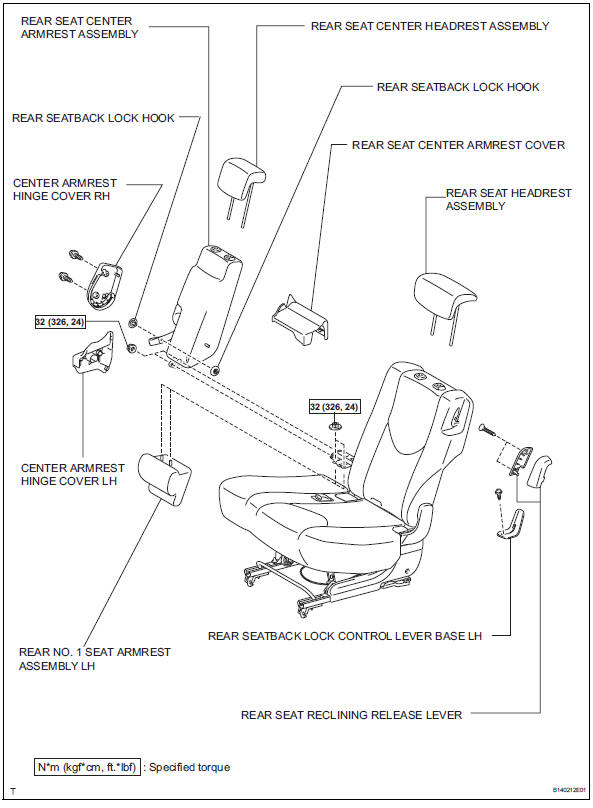

Components

Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Toyota RAV4. Rear no. 1 Seat assembly (for lh side)


Reassembly
Caution: Wear protective gloves. Sharp areas on the seat frame (with adjuster) may injure your hands. Install front seat wire Install seat position airbag sensor (see page rs-390) Install ...

Removal
Remove package tray trim pocket subassembly (w/o rear no. 2 Seat) Remove tonneau cover assembly (w/o rear no. 2 Seat) Remove rear floor no. 1 Board (w/o rear no. 2 Seat) Remove deck b ...
