Toyota RAV4 (XA40) 2013-2018 Service Manual: Rear wheel alignment

Toyota RAV4 (XA40) 2013-2018 Service Manual / Suspension / Rear wheel alignment

adjustment

Inspect tire

Inspect the tire (see page tw-1).

Measure vehicle height

Measure the vehicle height (see page sp-3).

Inspect toe-in

Standard toe-in

Toyota RAV4. Inspect toe-in

If the toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

Inspect camber

Install the camber-caster-kingpin gauge or set the vehicle on the wheel alignment tester.
Inspect the camber.

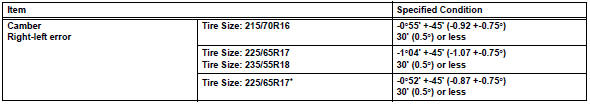

Standard camber

Hint:

*: W/ 3rd seat
Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
