Toyota RAV4 (XA40) 2013-2018 Service Manual: Transmission oil cooler

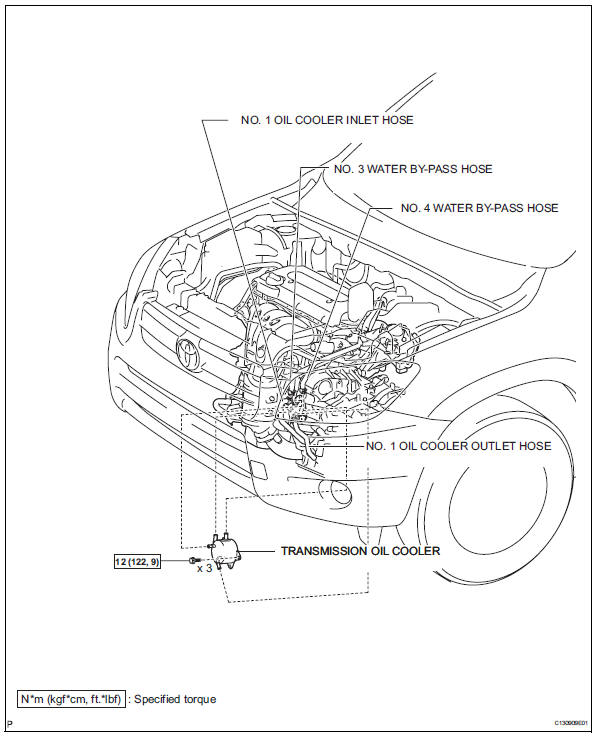

Components
Removal
- Remove transmission oil cooler
- *1: Disconnect the no. 3 Water by-pass hose from the transmission oil cooler.
- *2: Disconnect the no. 4 Water by-pass hose from the transmission oil cooler.
- *3: Disconnect the no. 1 Oil cooler inlet hose from the transmission oil cooler.
- *4: Disconnect the no. 1 Oil cooler outlet hose from the transmission oil cooler.
- Remove the 3 bolts and oil cooler from the bracket.
Installation
- Install transmission oil cooler
- Install the oil cooler to the bracket with the 3 bolts.
Torque: 12 n*m (122 kgf*cm, 9 ft.*Lbf)
- *1: Connect the no. 1 Oil cooler outlet hose to the transmission.
- *2: Connect the no. 1 Oil cooler inlet hose to the transmission.
- *3: Connect the no. 3 Water by-pass hose to the transmission.
- *4: Connect the no. 4 Water by-pass hose to the transmission.
- Add automatic transaxle fluid
- Inspect automatic transaxle fluid
- Inspect the automatic transaxle fluid (see page ax- 102).
- Add coolant
- Add the coolant (see page co-6).
