Toyota RAV4 (XA40) 2013-2018 Service Manual: Terminals of ecu

  1. Check tire pressure warning ecu

Toyota RAV4. Check tire pressure warning ecu

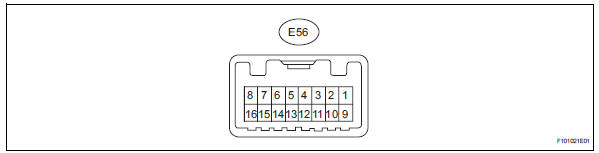

  1. Disconnect the e56 ecu connector.
  2. Measure the voltage and resistance of the wire harness side connector.

Toyota RAV4. Check tire pressure warning ecu


If the result is not as specified, there may be a malfunction on the wire harness side.

  1. Reconnect the e56 ecu connector.

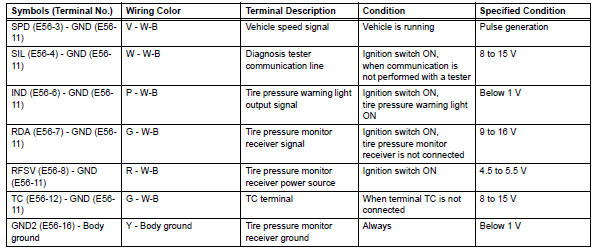

  2. Measure the voltage of the connector.

Toyota RAV4. Check tire pressure warning ecu


If the result is not as specified, the ecu may have a malfunction.

Problem symptoms table
Hint: Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "suspected area" column ...

Diagnosis system
Check dlc3 The ecm uses iso 15765-4 for communication. The terminal arrangement of the dlc3 complies with sae j1962 and matches the iso 15765-4 format. If the result is not as spe ...
