Toyota RAV4 (XA40) 2013-2018 Service Manual: Communication

Toyota RAV4. Communication


Description

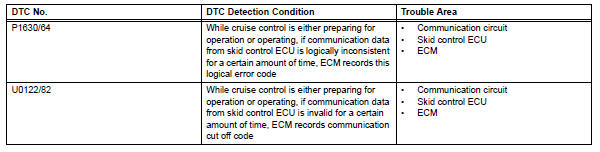

The skid control ecu sends signals such as cruise control cancel demand signals and brake operation demand from ecm response signals to the ecm when the cruise control system is in operation.

Toyota RAV4. Communication


Inspection procedure

Hint:

This circuit uses can communication. Therefore, if there are any malfunctions in the communication circuit, one or more dtcs in the can communication system are output.

  1. Check can communication system

Refer to how to proceed with troubleshooting (see page ca-8).

Toyota RAV4. Communication

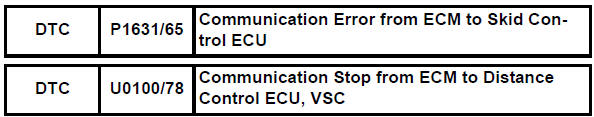

Description

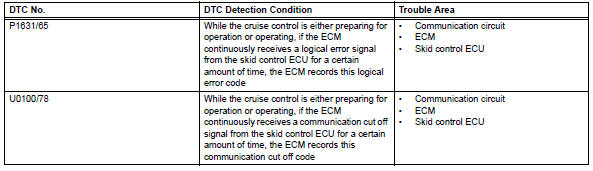

Therefore, if the skid control ecu detects a communication error from the ecm, it sends a malfunction signal back to the ecm.

Toyota RAV4. Communication


Inspection procedure

Hint:

This circuit uses can communication. Therefore, if there are any malfunctions in the communication circuit, one or more dtcs in the can communication system are output.

  1. Check can communication system

Refer to how to proceed with troubleshooting (see page ca-8).
