Toyota RAV4 (XA40) 2013-2018 Service Manual: Data list / active test

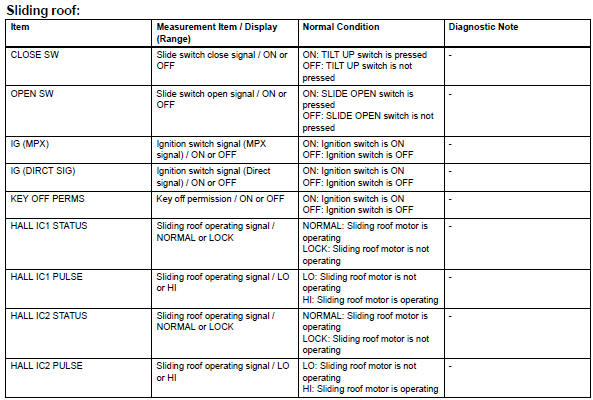

  1. Read data list

Hint:

Using the intelligent tester's data list allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the data list early in troubleshooting is one way to save time.

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch on.
  3. Read the data list according to the display on the tester.

Toyota RAV4. Data list / active test

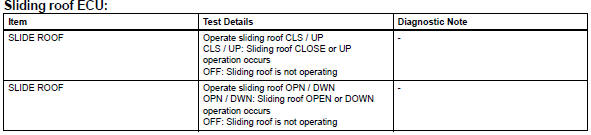

  1. Perform active test

Hint:

Performing the intelligent tester's active test allows relay, vsv, actuator and other items to be operated without removing any parts. Performing the active test early in troubleshooting is one way to save time. The data list can be displayed during the active test.

  1. Connect the intelligent tester to the dlc3.
  2. Turn the ignition switch on.
  3. Perform the active test according to the display on the tester.

Toyota RAV4. Data list / active test

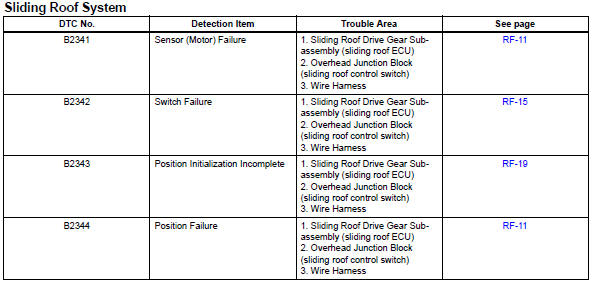

Diagnostic trouble code chart

Toyota RAV4. Diagnostic trouble code chart


Dtc check / clear
Check dtc Connect the intelligent tester to the dlc3. Turn the ignition switch on and turn the tester on. Select the following menu item: body / sliding roof / dtc. Check the dtc( ...

On-vehicle inspection
Hint: When pressing the switch for 0.3 Seconds or less, the roof glass moves but auto operation does not operate. Check auto operation Turn the ignition switch on. When the roof glass is ...
