Toyota RAV4 (XA50) 2019-2026 Owners Manual: Dinghy towing

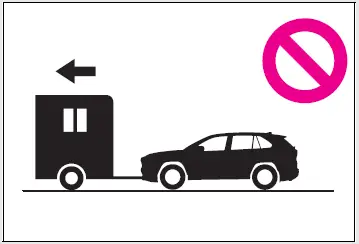

Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home.
NOTICE
â– To avoid serious damage to your vehicle
Do not tow your vehicle with 4 wheels on the ground.
â– To prevent causing serious damage to the transmission and AWD system (AWD models)
2WD models: Never tow this vehicle from the rear with the front wheels on the ground. This may cause serious damage to the transmission.
AWD models: Never tow this vehicle with any of the wheels on the ground. This may cause serious damage to the transmission and AWD system.
Trailer towing tips
Your vehicle will handle differently
when towing a trailer. Help
to avoid an accident, death or
serious injury, keep the following
in mind when towing:
Speed limits for towing a
trailer vary by sta ...
