Toyota RAV4 (XA40) 2013-2018 Service Manual: Disassembly
- Remove no. 3 Heater to register duct
- Detach the 6 claws and remove the heater to register duct.
- Remove air duct
- Detach the 2 claws and remove the air duct.
- Remove air outlet control servo motor
- Remove the 3 screws.
- Detach the evaporator case from the blower case.
- Remove air mix control servo motor
- Remove the 3 screws and disconnect the connector.
- Remove the air mix control servo motor.

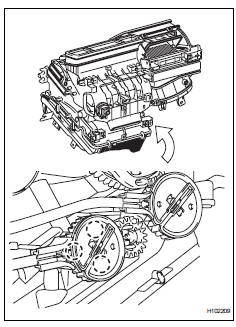

- Remove mode control cable assembly (for manual air conditioning system)
- Remove the 3 screws.
- Detach the evaporator case from the blower case.
- Detach the 3 claws and remove the cable.

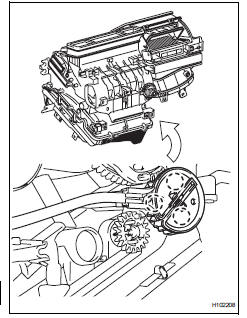

- Repair airmix damper control cable subassembly (for manual air conditioning system)
- Detach the 3 claws and remove the cable.
- Remove heater radiator unit sub-assembly
- Detach the screw and remove the clamp.
- Remove the heater radiator unit.
- Remove cooler expansion valve
- Using a 4 mm hexagon wrench, remove the 2 hexagon bolts.
- Remove the cooler expansion valve and 2 o-rings from the cooler evaporator.
- Remove no. 1 Cooler evaporator subassembly
- Remove the 4 screws.
- Detach the 2 claws and remove the cover.
- Detach the cooler thermistor clamp.
- Remove the cooler thermistor and cooler evaporator from the case.
- Remove evaporator temperature sensor
- Disconnect the cooler thermistor clamp from the cooler evaporator.
