Toyota RAV4 Service Manual: Front seat assembly (for power seat type lh side)

Toyota RAV4 Service Manual / Seat / Front seat assembly (for power seat type lh side)

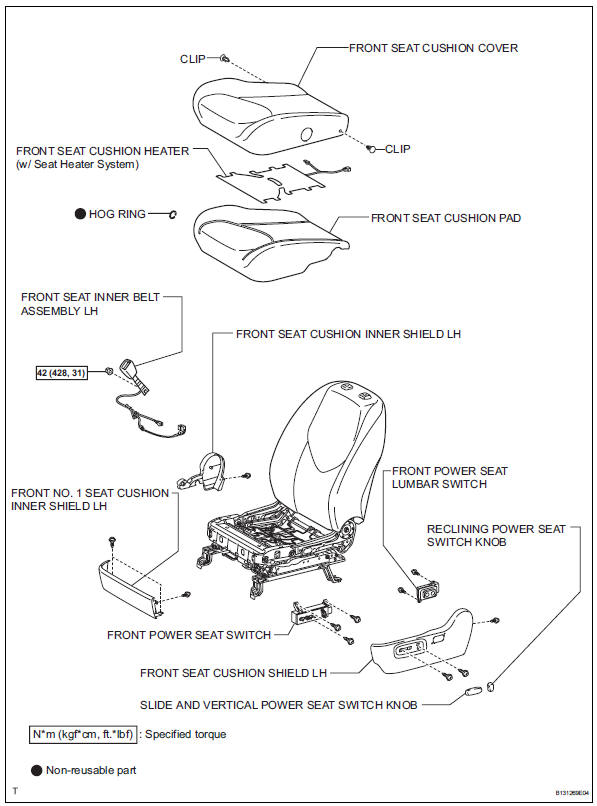

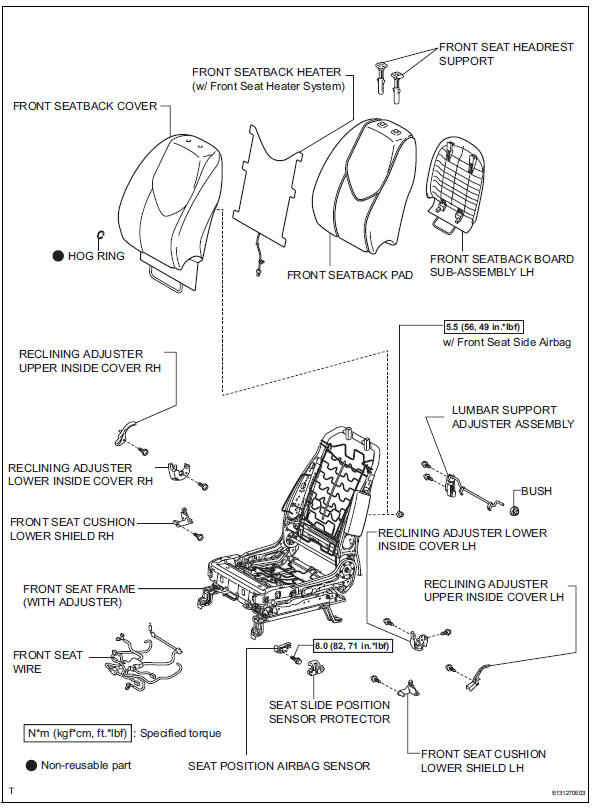

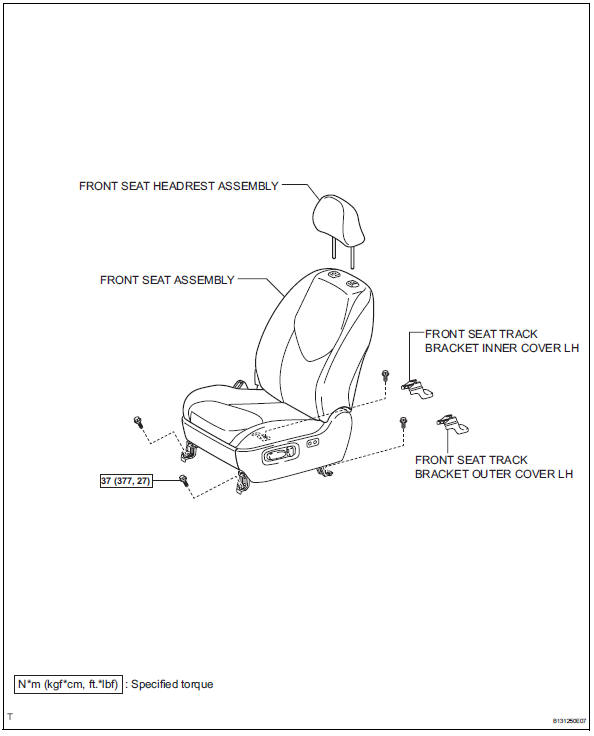

Components

Toyota RAV4. Front seat assembly (for power seat type lh side)


Toyota RAV4. Front seat assembly (for power seat type lh side)


Toyota RAV4. Front seat assembly (for power seat type lh side)


Reassembly
Caution: Wear protective gloves. Sharp areas on the seat frame (with adjuster) may injure your hands. Hint: Use the same procedures for the rh side and lh side. The procedures listed below ar ...

Installation
Hint: Use the same procedures for the rh side and lh side. The procedures listed below are for the rh side. Install front seat assembly Place the seat in the cabin. Notice: Be ca ...
