Toyota RAV4 Service Manual: Multiplex communication circuit

Toyota RAV4. Multiplex communication circuit


Description

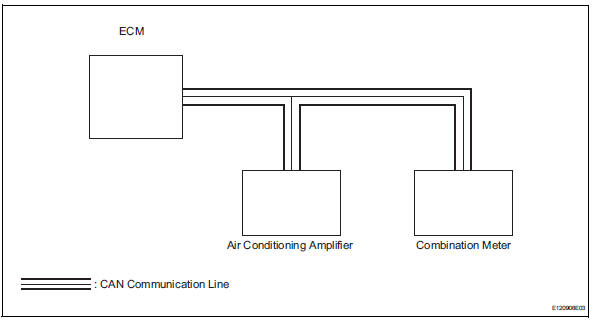

The air conditioning amplifier communicates data with the ecm and combination meter through the can communication system.

Toyota RAV4. Multiplex communication circuit


Wiring diagram

Toyota RAV4. Multiplex communication circuit


Inspection procedure

  1. Check dtc

  1. Clear the dtc (see page ac-127).
  2. Read the dtc (see page ac-127).

Result




Go to can communication system
