Toyota RAV4 (XA40) 2013-2018 Service Manual: Rear differential carrier assembly

Toyota RAV4 (XA40) 2013-2018 Service Manual / Differential / Rear differential carrier assembly

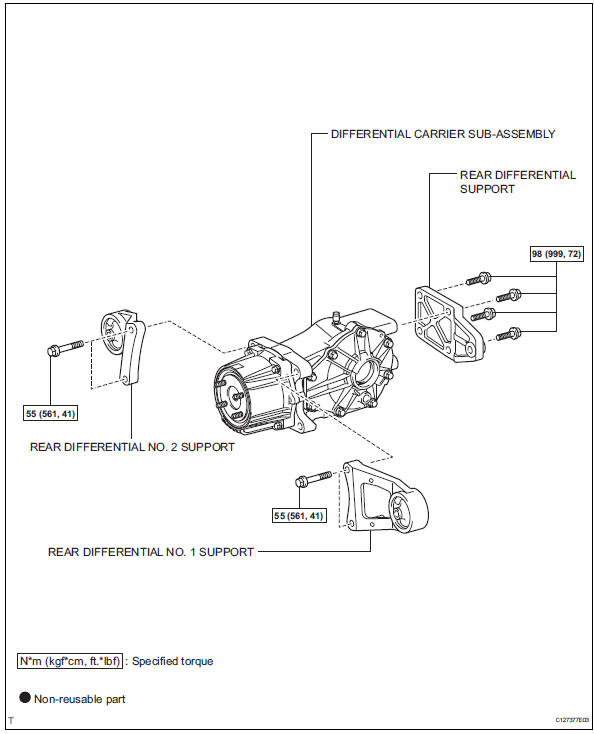

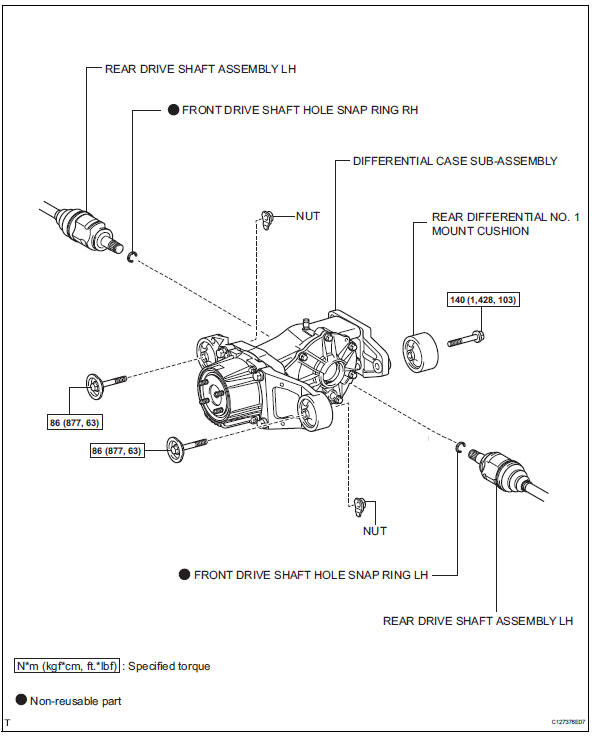

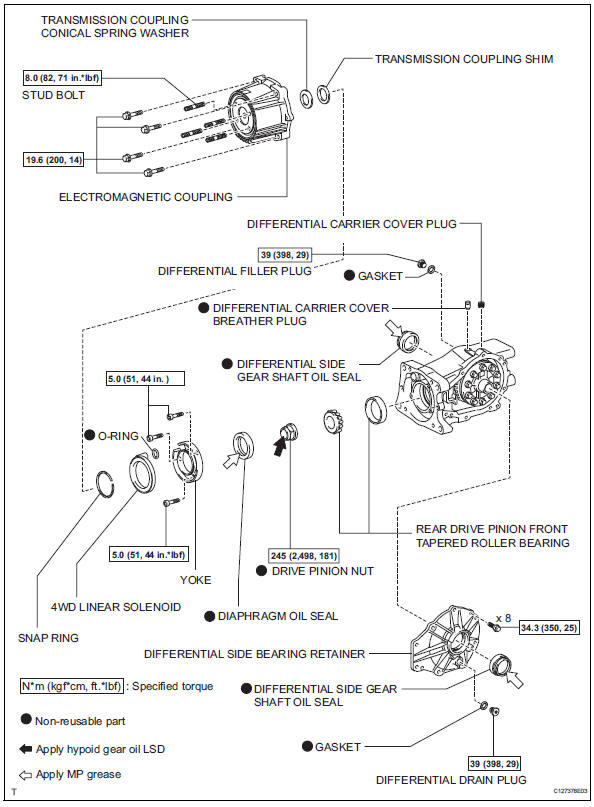

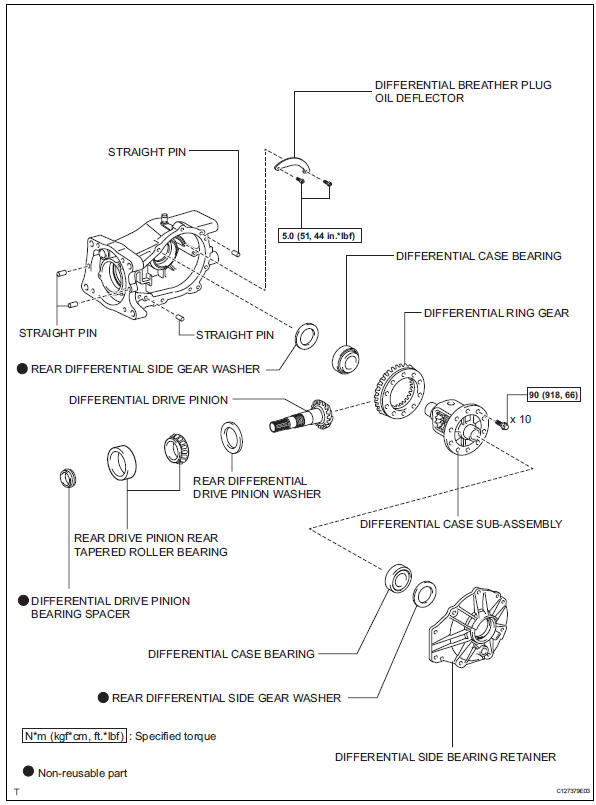

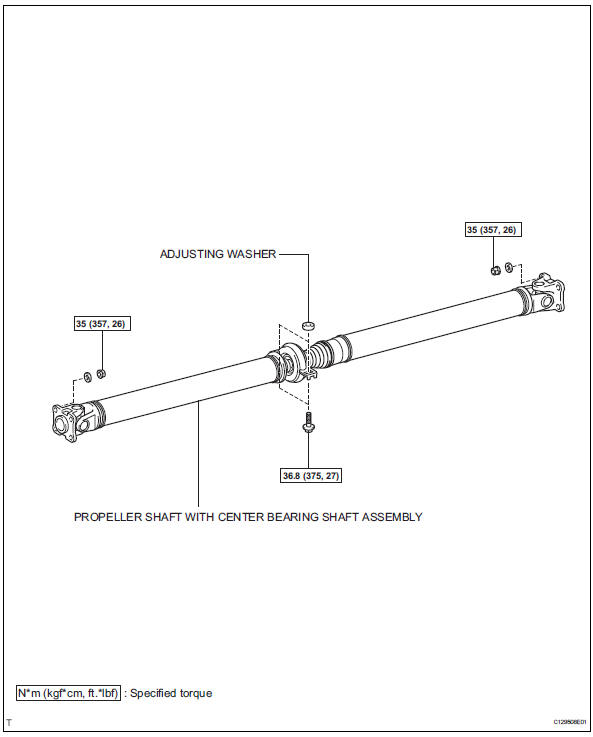

Components

Toyota RAV4. Rear differential carrier assembly


Toyota RAV4. Rear differential carrier assembly


Toyota RAV4. Rear differential carrier assembly


Toyota RAV4. Rear differential carrier assembly


Toyota RAV4. Rear differential carrier assembly


Toyota RAV4. Rear differential carrier assembly


Diaphragm oil seal
Components Removal Drain differential oil Using a 10 mm socket hexagon wrench, remove the rear differential drain plug and gasket, and drain the oil. Install a new gasket to t ...

Removal
Drain differential oil Remove rear wheel Remove tailpipe assembly Remove the tailpipe (see page ex-2). Remove center exhaust pipe assembly Remove the center pipe (see page ex- ...
