Power door lock system description

The power door lock system locks / unlocks all doors with a one-touch operation.

The door control switch of the power window regulator master switch or door control switch on passenger side sends lock / unlock request signals to the main body ecu. Then, the main body ecu sends these requests to the lock motors in each door to lock / unlock all the doors simultaneously.
Operating the driver side door lock using a key sends lock / unlock request signals to the main body ecu.

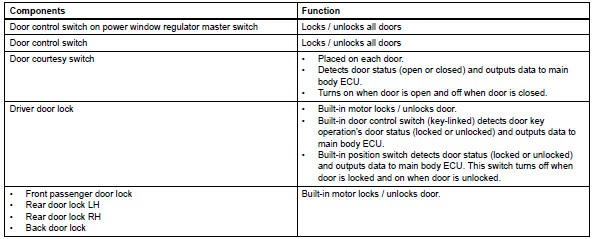

Components

Toyota RAV4. Components

Functions

This system is controlled by the main body ecu. The main body ecu outputs signals to each door lock motor.

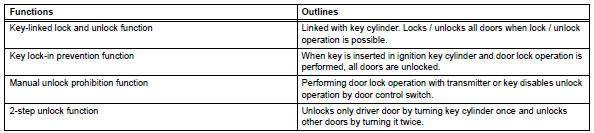

The door lock control system in the vehicle has the following functions:

Toyota RAV4. Functions

Parts location

System diagram ...

How to proceed with troubleshooting

Hint: Use the procedure to troubleshoot the power door lock control system. *: Use the intelligent tester. Vehicle brought to workshop Inspect battery voltage Standard voltag ...
